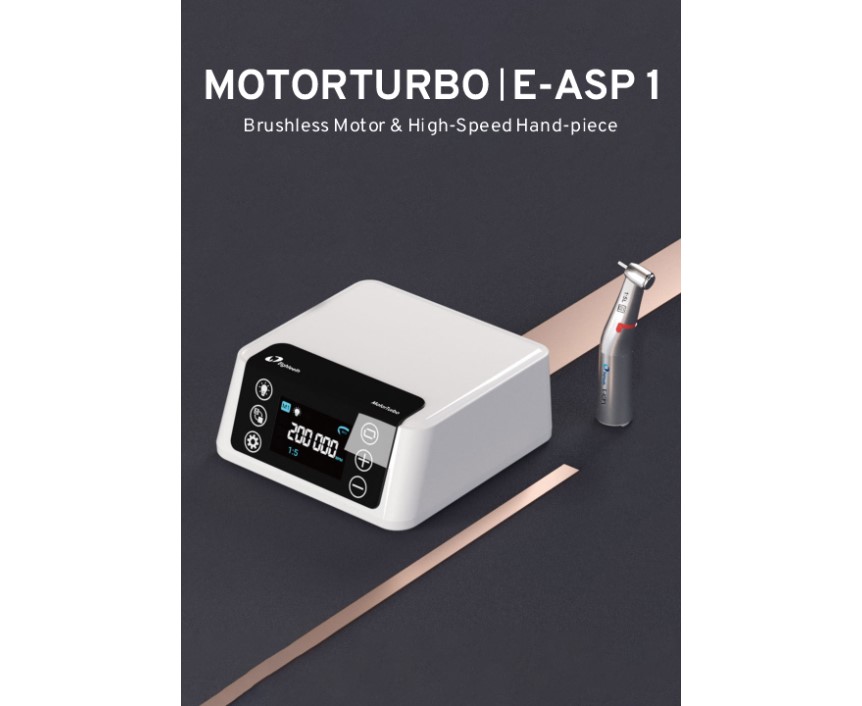

Motorturbo & E-ASP1- Power Your Dental Life

• Light intensity adjustment
• Memory programms switching (M1-M4)
• Transmission ratio presets (1:5 1:1 16:1 20:1)
• Forward/ Reverse
• Speed adjustment

• Strong cutting power and stable torque output
• 4 memory program presets monitor speed and direction
• 4 transmission ratio presets offer the versatility to choose the right system to fit your treatment needs
• Reliable security alarm system
• LCD touch screen and color display provide an intuitive user interface to reduce time spent making adjustments
• Fully autoclavable with disinfection front & back plug
• The standard four-hole handpiece connector suitable for all types of dental chairs

More comfortable- A strong cooling system provides patients with a comfortable temperature in treatment
Longer lifetime- Brushless DC motor lifespan is approximately 6 times higher than the counter brushed DC motor
Quieter- Produce comparatively low operating noise as compared to other motors of the same ratings
More efficient- A very compact and small-sized brushless DC motor provides maximum torque continuously during rotation

LED fiber optics
– Shines light directly on the preparation, improving visibility tremendously
– Reduces visual fatigue and stress

Super strong push-button chuck system
– Enhanced bur retention and long-lasting reliability
– Time-saving and quick bur change

Ergonomic design
– Enhances grip for better control

Multi-port spray
– Keeps the bur cool while whisking
debris

Anti-retraction technology
– Prevents backflow of water into the dental delivery unit
– Avoids cross infection

Quick disconnect coupling
– Smooth swiveling to reduce fatigue
– Quick click for easy use and cleaning

Durable components
– Achieve long-lasting performance through repeated sterilization

Specifications:

Motorturbo-

Model : E-ASP1
Model : MotorTurbo
Display : LCD colour display
Dimension Main Unit : 130 x 129x 54 mm
Weight : 600 g
Memory programms : M1-M4
Transmission ratiopresets : 1: 5 1: 1 16: 1 20: 1
Motor speed range : : 2000-40000 rpm
Motor torque: Max. 3.0 Ncm
Power cable length : 1.5m
Motor tail wire length : 2m
Light : : White LED

High-Speed Handpiece-

Model : E-ASP1
Maximum allowable motorspeed(rpm) : 40000 rpm
Installation and removal of burs or dental drills: Friction chuck
RaTio : 1:5
Locking system : Push-button bur locking
Bur dimension : Bur shank Ø 1.6 m
Optical fiber : Light guide glass
Cleaning/Sterilisation : Steam autoclave up to 135°C
