Nitrous oxide device Baldus Touch
The nitrous oxide mixer with simply more – more high technology, more features, more safety!
Timeless elegance combined with superior technology Baldus® Touch is the next generation nitrous oxide device in the field of nitrous oxide sedation.
touch screens are indispensable in everyday life. The Baldus® Touch is the next generation of digital oxygen-nitrous oxide mixers with innovative menu functions and system settings. Unbeatable, our No. 1 of all systems!
Baldus Touch details
Highlights: nitrous oxide device Baldus Touch

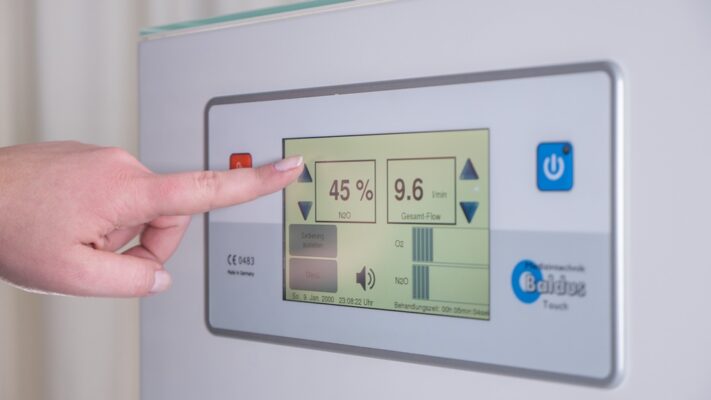

- Touchscreen – more usability and more possibilities
- Automatic patient documentation and data export
- Automatic rejection function
- Max. Total flow 18l / min.
- O2 flush button and complete failsafe system
- Self-test and error memory
- Automatic self test
- Precise thermal measurement method
- More fun at work!
- Made in Germany
Description

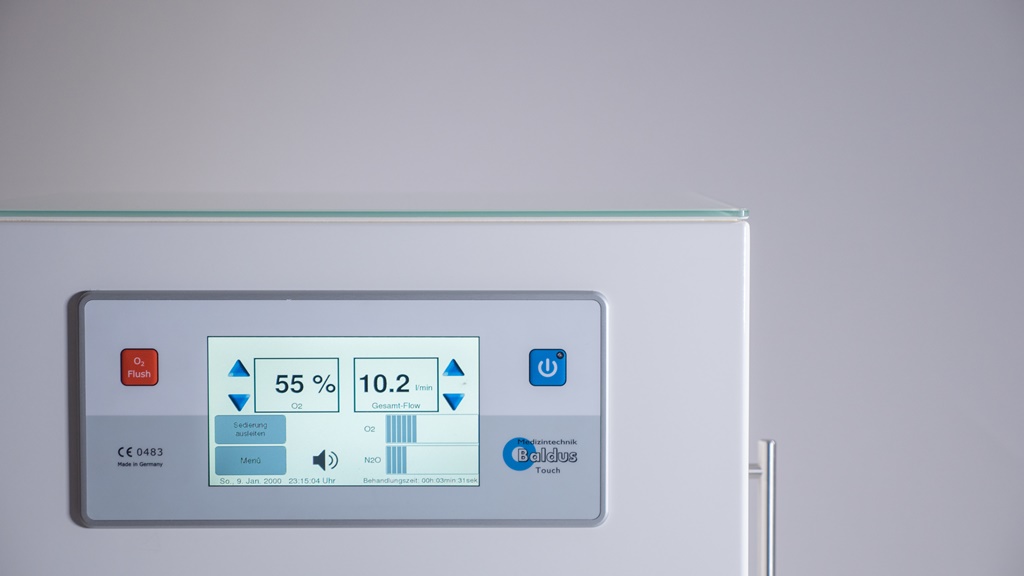

- Digital mixer with control via HQ touchscreen
- Max. Mixing ratio selectable between 50%, 60% or 70% N2O (standard delivery 70%)
- CE certified
- Mixing ratio can be precisely set via % display
- Automatic adjustment of the output flow “One-Fingertip-Control”
- Oxygen flush via signal red button
- Extended premium security package with acoustic and visual information signals
- Self-test functions and watchdogs
- Automatic laughing gas stop in the event of O2 failure “Nitrolock”
- Check valve on the Bag-T
- Rebreathing substance (with empty breathing bag)
- Standard-compliant coding of the gas types
- Note: The oxygen-nitrous oxide mixer can be installed in the All-in-One-Cart 15005T, in a cavity wall or in a door of the work area
- US Patented No. 10,065,159 B2
This is included in the package:
- “Baldus Touch” nitrous oxide device
- Baldus Adult Double Nose Mask Scavenger System, including 3 x Disposable Adult Double Nose Masks Blueberry and 3 x Disposable Children’s Double Nose Masks Strawberry, plus a complete tubing set with connectors.
- Baldus vacuum control block with inline flow measurement
- Breathing bag 3 liters, latex-free and autoclavable
- Ultraslim cylinder pressure regulator O2 incl. Med. Fabric hose
- Ultraslim cylinder pressure regulator N2O incl. Med. Fabric hose

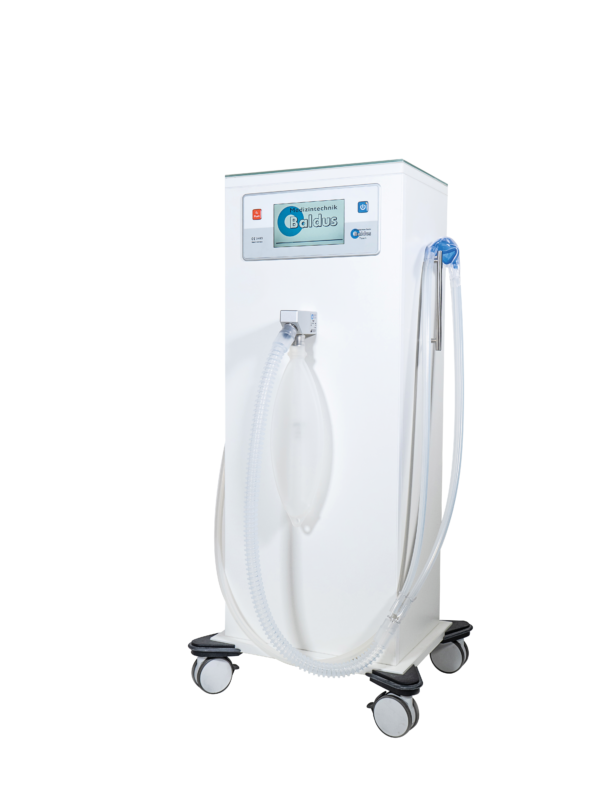

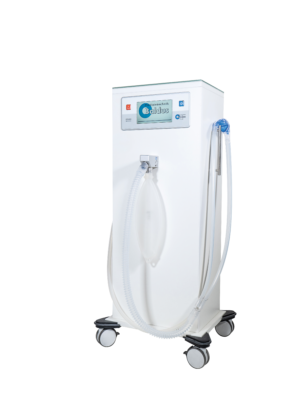

- All-in-One-Cart Ultra-Slim, fully clad trolley for Baldus Touch or Analog, dimensions: 108 x 38.5 x 29 cm, 25 kg, color: matt white
- Marketing package: waiting room film, patient flyer, images, medical product book
Additional information
| N2O limitation | 70%, 60%, 50% |
|---|---|
| Total flow | Maximum total flow 18 l / min |
| Security package | Extended premium security package with acoustic and visual information signals |
| connections | Connection for O2 demand mask |
| Input voltage | 110 / 230V AC 56-60HZ |
| warranty | 5 year guarantee when signing a maintenance contract |
