Combo Offer – Waldent RTA i sensor + Waldent V Light Eco Gold DC

₹115,000.00

Categories: Clinical setup, Uncategorized, Waldent, X-Ray unit Tags: RVG sensor, waldent, Xray unit

Description
Reviews (0)

Combo Offer – Waldent RTA i sensor By Woodpecker Size – 1 + Waldent V Light Eco Gold DC X-Ray Machine. Get Intraoral camera USB Model FREE

High-quality dental digital radiography sensor compatible with Windows for precise imaging

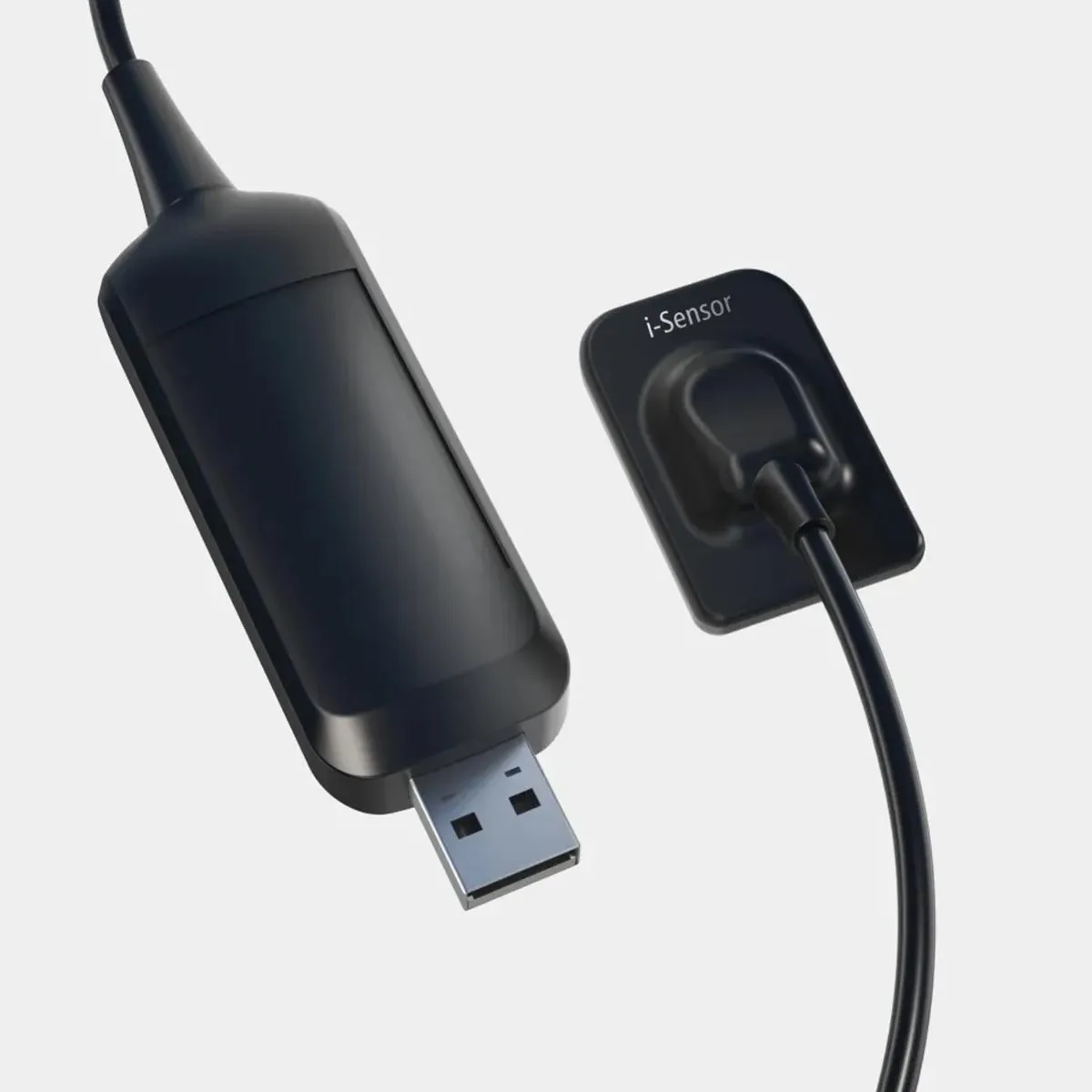

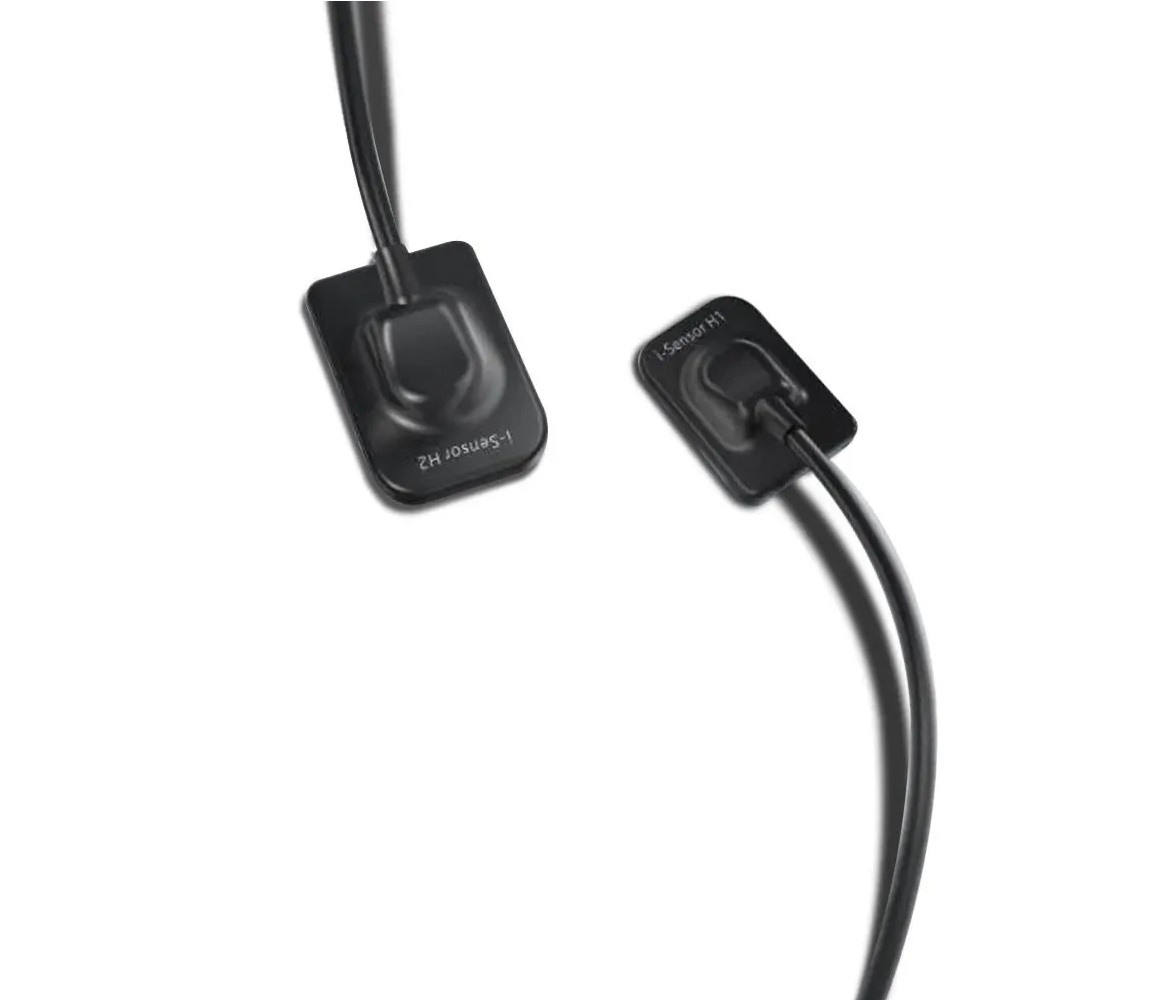

Waldent RTA i-Sensor RVG by Woodpecker is a state-of-the-art dental imaging solution designed to streamline radiographic procedures and enhance diagnostic precision. This Radiovisiography (RVG) system integrates seamlessly into dental practices, offering exceptional image quality and ease of use. The sensor boasts an ultra-thin profile and ergonomic design for patient comfort and precise placement. With advanced sensor technology, it captures X-ray radiation and converts it into high-resolution digital images for detailed analysis. The accompanying monitor provides real-time visualization of images, empowering dentists to make informed treatment decisions efficiently. Built with durability and reliability in mind, this RVG system ensures consistent performance, while its IP68 rating protects against dust and liquid ingress for long-lasting use. Experience the future of dental imaging with the Waldent RTA i-Sensor RVG by Woodpecker, where innovation meets excellence for superior patient care.

Key Specifications:

Image Resolution: Ultra-high resolution for clear diagnostics
User Interface: High-quality, user-friendly interface
Design: Comfortable and ergonomic design
Scope of Application: Oral two-dimensional image capturing, case diagnosis, information management
Operation Mode: Intermittent operation mode
Electric Shock Protection: BF type applied part
Water Ingress Protection: IP68
X-ray Generator Compatibility: Compliant with dental X-ray machine standards
Power Adapter Input: 5V/USB interface
Effective Area Size- 1 : 20*30mm( Size – 1 )
Effective Area Size – 1.5 : 24*33mm( Size – 1.5)
Effective Area Size – 2: 26*36mm( Size – 2)
Pixel Matrix Size -1: 1000*1500( Size-1)
Pixel Matrix Size -1.5: 1200*1650( Size – 1.5)
Pixel Matrix Size -2: 1300*1800mm( Size – 2)
Pixel Size: 20μm
Effective Resolution: > 12Ip/mm
Temperature: 10℃ to 35℃
Humidity: 20% to 90%
Atmospheric Pressure: 70kPa to 106kPa

Installation Application Specification

Operating System: Windows® 7 or above
Processor: Intel® Core 4
Memory: 8 GB or above
Hard Disk: 500 GB or above
USB Port: 4 high-speed USB 2.0 ports
USB Chip: Intel or NEC / RENESAS
Display Resolution: 1920 x 1080
Software Installation: Run “Ai-Dental setup.exe” installation program
Sensor Support Frame Installation: Fixed on flat wall with two screws, Secure sensor on support frame when not in use

Features

High-resolution imaging – 25lp/mm theoretical resolution
Cmos Detector Techhnology
Thinnest sensor 4:5mm
USB cable – 2.8m

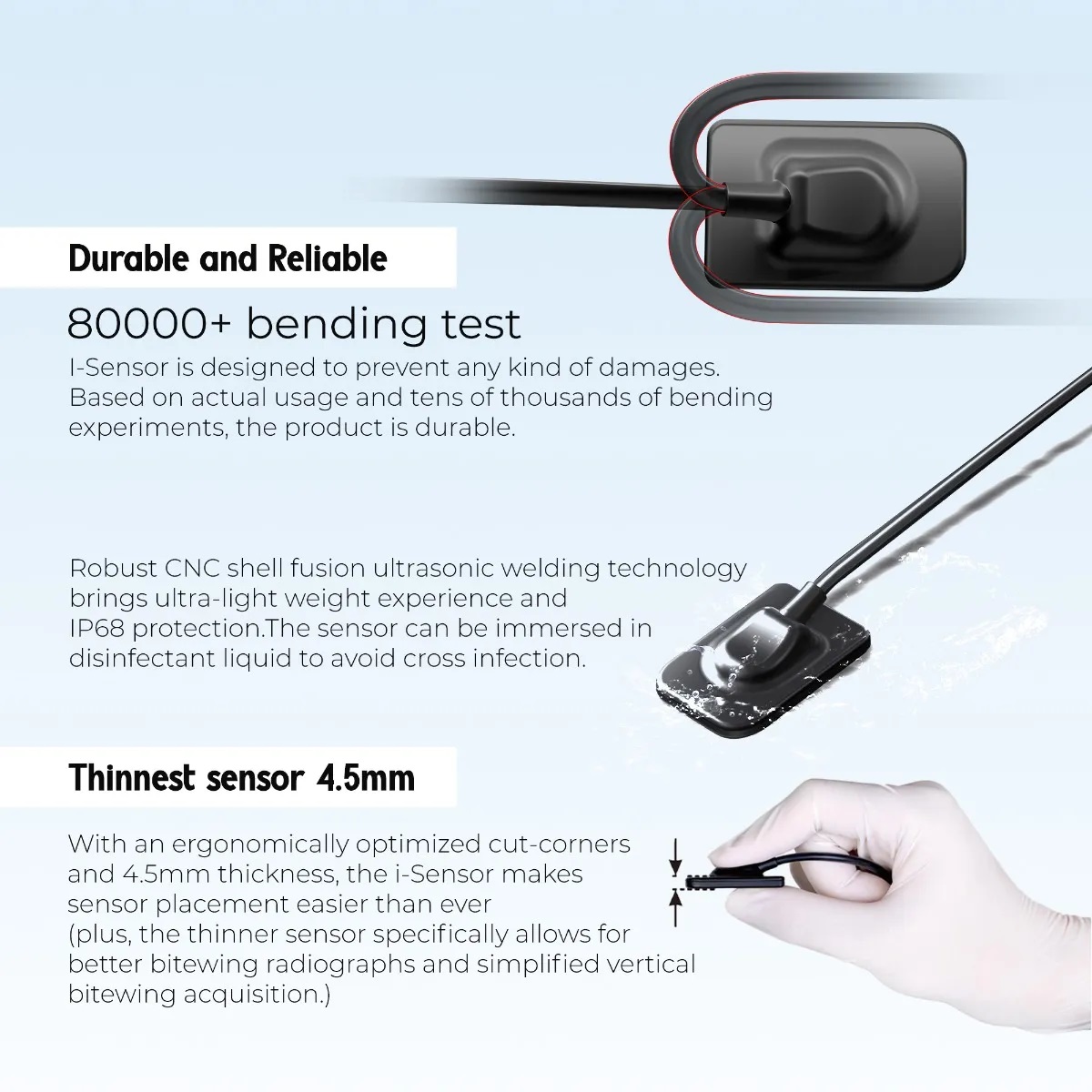

Durable and reliable: 80000+ bending test & IP68 protection rating
Smart and powerful software
Curved Edges to Avoid Patient Injury
Highly Flexible Cable

Packaging:

1 x Rvg i Sensor
1 x Disposable protective bag
1 x Sensor fixer
1 x Sensor silicone sleeve
1 x Anti-counterfeiting query label
1 x U disk
2 x Fixing screw
2 x Rubber Stopper
1 x Qualified certificate
1 x Warranty card
1 x Instruction manual

Warranty :

Manufacturer/Importer warranty of 5 Years as applicable for this product.
Warranty does not apply against any physical damage to the product.

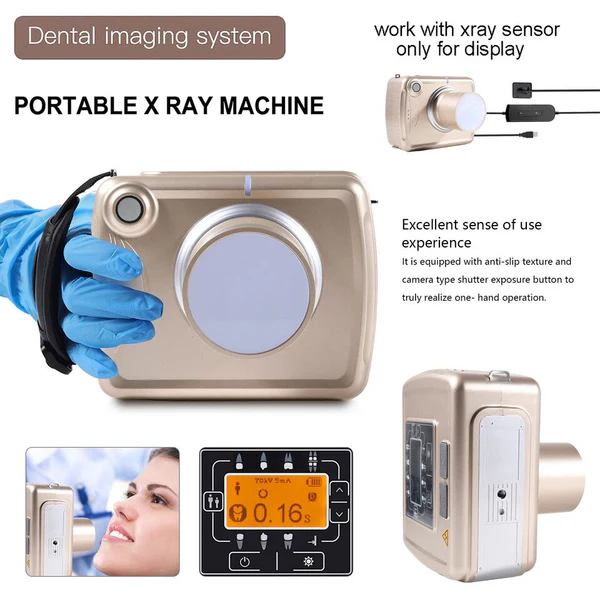

Waldent V Light Eco Gold DC X-Ray Machine

The unit is an advanced high-frequency field dental x-ray device rated at 60kV DC and 2 mA tube current. It has inverter X-ray control methods for producing tooth and maxillary bone images for both chemical film and digital sensors in high quality. The unit operates on a 22.2VDC supplied by a rechargeable LiPolymer battery pack. When radiographs are to be taken, the device can either be handheld or mounted on a tripod.

Functional Explanation:

Status Display on the LED:

LED color changing: Unit status display
Off ⇒ Turn off
Green ⇒ Standby for shot
Yellow ⇒ Exposing X-ray
Red ⇒ Unit error

X-ray EXPOSURE button:

It makes use of X-ray EXPOSURE.
If you press the button 2 seconds more, it will expose for the set time.
If you release the button before 2 seconds, it occurs a unit error.

X-ray Exposure cone:

We made the inside of the cone with lead, it prevents from exposing the X-ray
to the user.

Hand strap ring:

The top and bottom rings are connected with a hand strap.

Necklace strap ring:

It is for connecting with the necklace strap.

Big/Small size option:

Press the key to show the size option on the screen.

Power ON /OFF button:

It is a button for turning on (or turning off) the unit.

Changing exposure time up (+):

When presses the button, the exposure time will be increased.

Changing exposure time down (-):

When presses the button, the exposure time will be decreased.

User’s MODE button:

If the user wants to change the set item, press the button and you can enter
the set item area.

Saving exposure time:

If you press the button 2 seconds more, the exposure time is stored.

Charging connector:

The connector is for the purpose of charging the battery.

Hand Switch connector:

The connector is for the purpose of connecting with a hand switch.

Tooth type of exposure object:

They are buttons for selecting tooth of the exposure object.

LCD screen:

It is displayed the unit’s status and information.

Standard fixing Hall:

The hall is for the purpose of use with a tripod.

Battery replacement cover:

The cover is used for battery protection and replacement.

Key Specifications:-

Main body:

1. X-ray generator

Tube Voltage 60 kV (Fixed)
Tube current 2 mA (Fixed)

2. X-ray Control device

Main power Battery 22.2 V DC, Adaptor 25.6 V DC.
Exposure time 0.01 – 2.00 sec (Manual 56 steps)

3. X-ray Exposure

Type Round style.
Output Radiation Field 60 mm.
SSD(standard) 200 mm

4. X-ray tube

Type Stationary anode X-ray tube.
Tube Model KL11-0.4-70
Tube Focus 0.4 mm.
Anode heat capacity 4500 J
Maximum Tube Voltage 70 kV.
Target Angle 12 °
Total filtration Basic filtration 0.8 mm Al. Additional filtration 1.0 mm Al
Solid high thermal conductivity resin cooling system

Battery:

Type Li-ion Polymer.
Voltage 22.2 V DC.
Capacity 950 mAh

Charger:

Input 100 – 240 V AC, 50 – 60 Hz.
Output voltage 25.2 V DC
Output current 1 A.
Status display of unit LED (Red: Undercharging, Green: Finished charging)

Features:-

0.4mm focus to get high-definition images:

High-voltage generator with 0.4mm focus, high-definition imaging,
enjoy top quality.

High-frequency DC technology:

Ultra-low radiation, the exposure dose is reduced by more than 30% compared
with the standard generator, maximizing effective rays and greatly reducing the
radiation intensity.

Ergonomic design:

Shoot different teeth, fine-tune the shooting time, and achieve personalized and precise control.

High-capacity lithium battery:

950 mAh ultra high capacity battery, the battery can be replaced, low cost Of use.

Multiple shooting methods:

The battery is durable, it can take about 150 images after being fully charged.

Packaging:-

1 x Main Unit
1 x Cone
1 x User Manual
1 x Adapter
1 x Shoulder Strap
1 x Hand Strap
1 x Qualification Certificate

Warranty:-

Manufacturer/Importer warranty of 1 Year as applicable for this product
