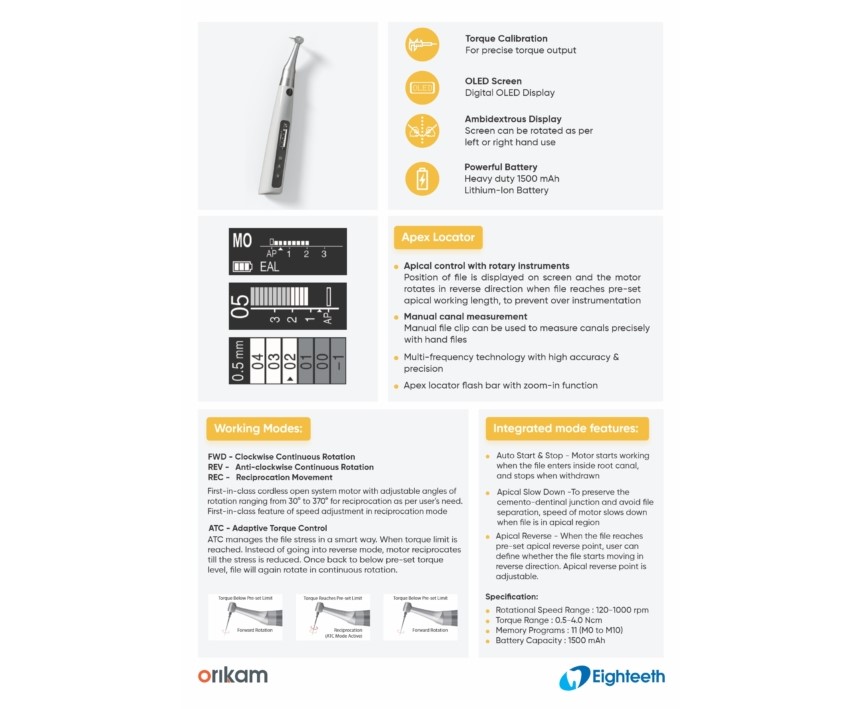

Description:

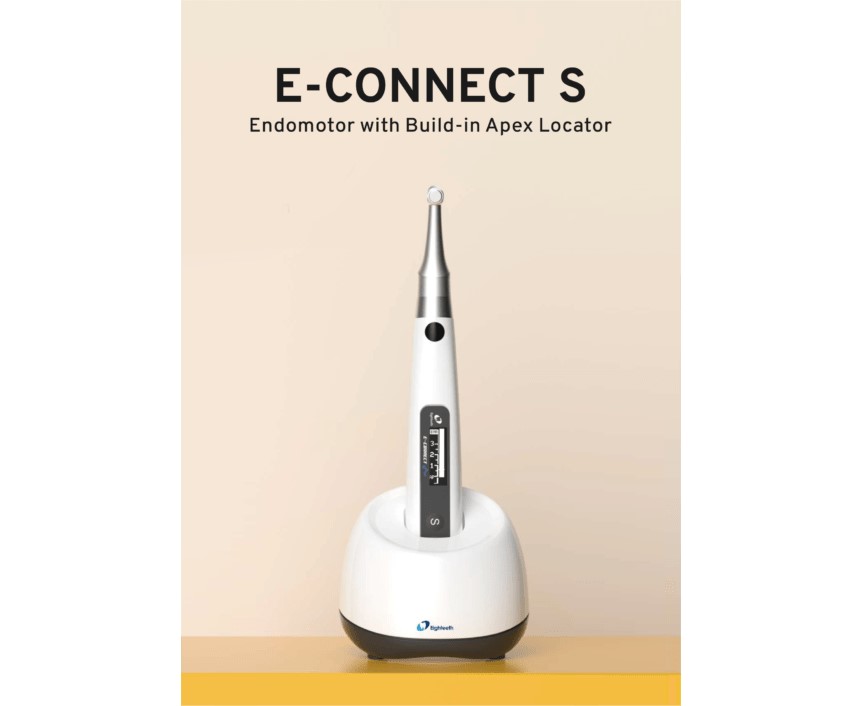

E-connect S
Â
Torque Calibration: For precise torque output
OLED Screen: Digital OLED display
Ambidextrous Display: The screen can be rotated as per left or right-hand use
Powerful Battery: Heavy-duty 1500 mAh, Lithium-Ion battery
Â
Apex Locator
- Apical control with rotary instruments
Position of file is displayed on screen and the motor rotates in reverse direction when file reaches pre-set apical working length, to prevent over instrumentation
- Manual canal measurement
Manual file clip can be used to measure canals precisely with hand files
- Multi-frequency technology with high accuracy & precision
- Apex locator flash bar with zoom-in function
Â
Working Modes:
- FWD – Clockwise Continuous Rotation
- REV – Anti-clockwise Continuous Rotation
- REC – Reciprocation Movement
First-in-class cordless open system motor with adjustable angles of rotation ranging from 30° to 370° for reciprocation as per user’s need. First-in-class feature of speed adjustment in reciprocation mode.
- ATC – Adaptive Torque Control
ATC manages the file stress in a smart way. When torque limit is reached- instead of going into reverse mode, motor reciprocates till the stress is reduced. Once back to below pre-set torque level, file will again rotate in continuous rotation.
Integrated Mode Features:
- Auto Start & Stop: Motor starts working when the file enters the root canal, and stops when withdrawn
- Apical Slow Down: To preserve the cemento-dentinal junction and avoid file separation, speed of motor slows down when file is in apical region
- Apical Reverse: When the file reaches pre-set apical reverse point, user can define whether the file starts moving in reverse direction. Apical reverse point is adjustable
Specification of E-Connect S:
- Rotational Speed Range: 120-1000 rpm
- Torque Range: 0.5-4.0 Ncm
- Memory Programs: 11 (M0 to M10)
- Battery Capacity: 1500 mAh
