Features
- Direct imaging technology, easy to obtain high resolution imaging.
- 3 seconds to get image.
- Patient friendly design.
- Waterproof chip.
- Durable, reliable and faster.
- Perfect user experience, multi-terminal supporting software.
- Standard size sensor.

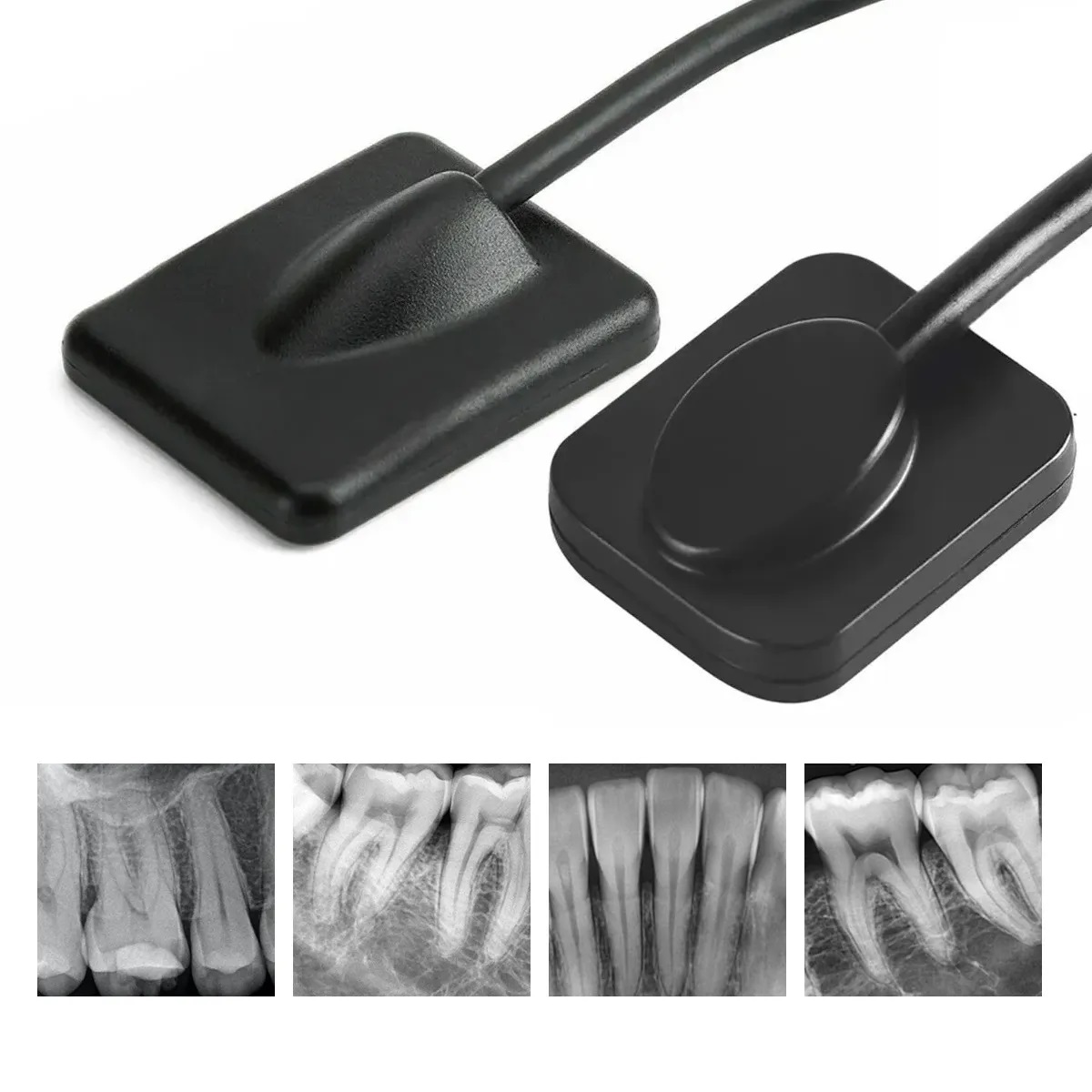

Description
Wide dynamic range and high contrast resolution of the sensor work together to make unparalleled clarity for both the tooth and subtle details. Multiple image processing algorithms help to improve image contrast and sharpness with more exquisite details of the soft tissues.
Profound Reliability:-
- The whole imaging procedures go directly from data acquisition to immediate image display and reading. There is NO need for any X-ray film.
- The sensor casing is purposely designed to resist shocks, bite, and drops to ensure product durability. It is absolutely waterproof, able to be a plate reader.
- Sensor can be immersed in disinfecting solutions for better hygienic and safety protection. The protective sheaths reduce the risk of cross-contamination and protect plates from scratches and heat.
- Extraordinary Usability.
- The computer supports Iigtingfast data transmission and enables real-time imaging. User-friendly design is also compatible with the currently available imaging technology on the market.
Photon Counting Detector Technology:-
- Our sensor detector is tally digital, without a need for film processing. Photon counting detector technology converts X-rays into digital signals directly; and with the standard microelectronics fabrication process, thus enjoying sizeable cost advantage. It provides high dynamic range, high contrast-resolution images at a comparatively lower dosage.
Key Specifications
Product Specifications (Type 1)
- Weight – 0.1KG
- Size – 26.5mm×32mm×6mm(Sensor)
60mm×40mm×29.2mm(Adaptor)
Product Classification (Type 1)
- Anti-shock type Type II applied part
- Anti-shock level BF
- Water-proof IP67(For sensor only)
- Operation mode-Continuous
Software Requirement ( Type 1)
- Operating Software:Windows 7 SP1,8,10 32/64bit
- Runtime: Net Framework 4.6 or higher, VC++ 2015
Hardware Requirements ( Type 1)
- Central Processor: Intel Core i5 or higher
- Internal Memory: 8GB or higher
- Hard Disk: 1TB or higher
- Display: 1280X1024
- USB: One
- Keyboard: One
- Mouse: One
Environment Requirments ( Type 1)
Temperature Range
- Operation – +10°C~+40°C
- Transportation and storage – -20°C~+55°C
Humidity Range
- Operation – ≤80%(No condensation)
- Transportation and storage – ≤93%(No condensation)
Atmospheric Pressure Range
- Operation- 700hPa~1060hPa
- Transportation and storage -700hPa~1060hPa
Power Supply Requirements
- Operation voltage – DC 5V±10%
- Input power – 500mW
Image Processing Unit ( Type 1)
- Spatial Resolution – ≥7Lp/mm
- Low contrast resolution – Able to display holes with 1mm, 1.5mm, 2mm and 2.5mm diameter on the 0.5mm-thick aluminium foil
- Image uniformity – ≤2%
- Effective image area – 20.16*20.16mm
- Ghost and artifact – No
Hardware Requirements ( Type 2 )Â
- Central Processor: Intel Core i3 or higher
- Internal Memory: 4GB or higher
- Hard Disk: 80GB or higher
- Display: 1280X1024
Software Requirement ( Type 2 )
- Operating Software:Windows 7 SP1,8,10 32/64bit
- Runtime: Net Framework 4.6 or higher, VC++ 2015
Environment Requirments ( Type 2)
Temperature Range
- Operation – +10°C~+40°C
- Transportation and storage – -20°C~+55°C
Humidity Range
- Operation – ≤80%(No condensation)
- Transportation and storage – ≤93%(No condensation)
Atmospheric Pressure Range
- Operation- 700hPa~1060hPa
- Transportation and storage -700hPa~1060hPa
Power Supply Requirements
- Operating Voltage : 5VDC
- Input power :500mW
Image Processing Unit ( Type 2)
- Spatial Resolution:≥7Lp/mm
- Low contrast resolution :Able to display holes with 1mm, 1.5mm, 2mm and 2.5mm diameter on the 0.5mm-thick aluminium foil
- Image uniformity ≤2%
- Effective image area:25*30mm
- Sensor Size:37.16mm×32mm×6mm
- Adaptor Size:113.66mm×40mm×15.8mm
- Total Cable Length: 3 m
Packaging

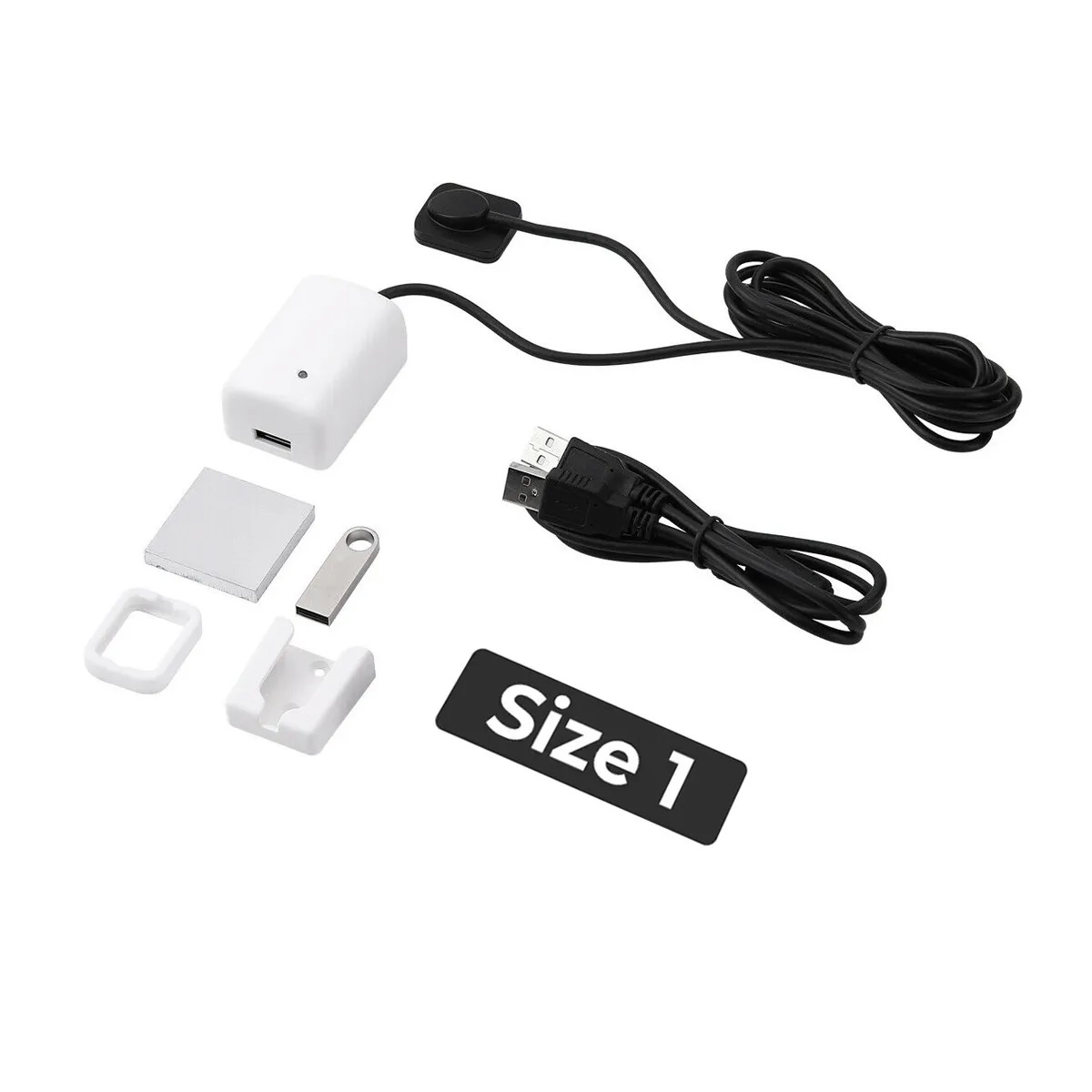

Endoking Dental RVG Sensor Standard Size 1
- 1 X Intraoral sensor
- 1 X USB Connection Cable
- 1 X Workstation Software Pendrive
- 1 x Aluminum plate
- 1 X Adaptor
- 1 x Disposable protective sleeve pack
- 1 X Silicon Loop
- 1 X Sensor Holder

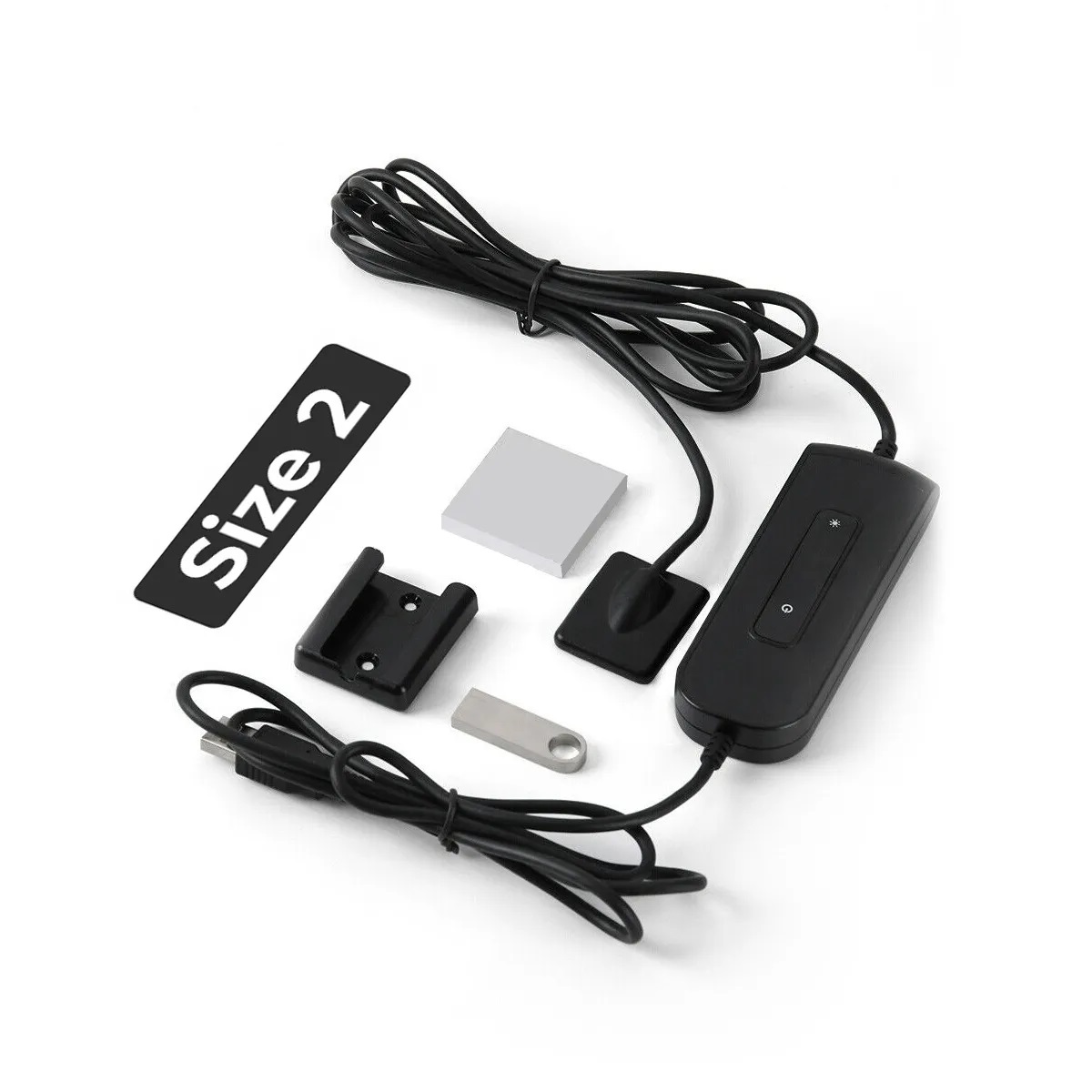

Endoking Dental RVG Sensor Standard Size 2
- 1 x Intraoral sensor
- 1 x Aluminum plate
- 1 x Sensor holder
- 1 x Workstation Software Pendrive
- 1 x Disposable protective sleeve pack
- 1 x User Guide
Direction to Use
- Prepare the patient and the area to be imaged.
- Cover the sensor with protective sheath and set the patient details in the records
- Place the sensor in the required area and start the radiographic exposure.
- Continue with the diagnostic procedure
- Remove the protective sheath and discard according to local waste management policy
