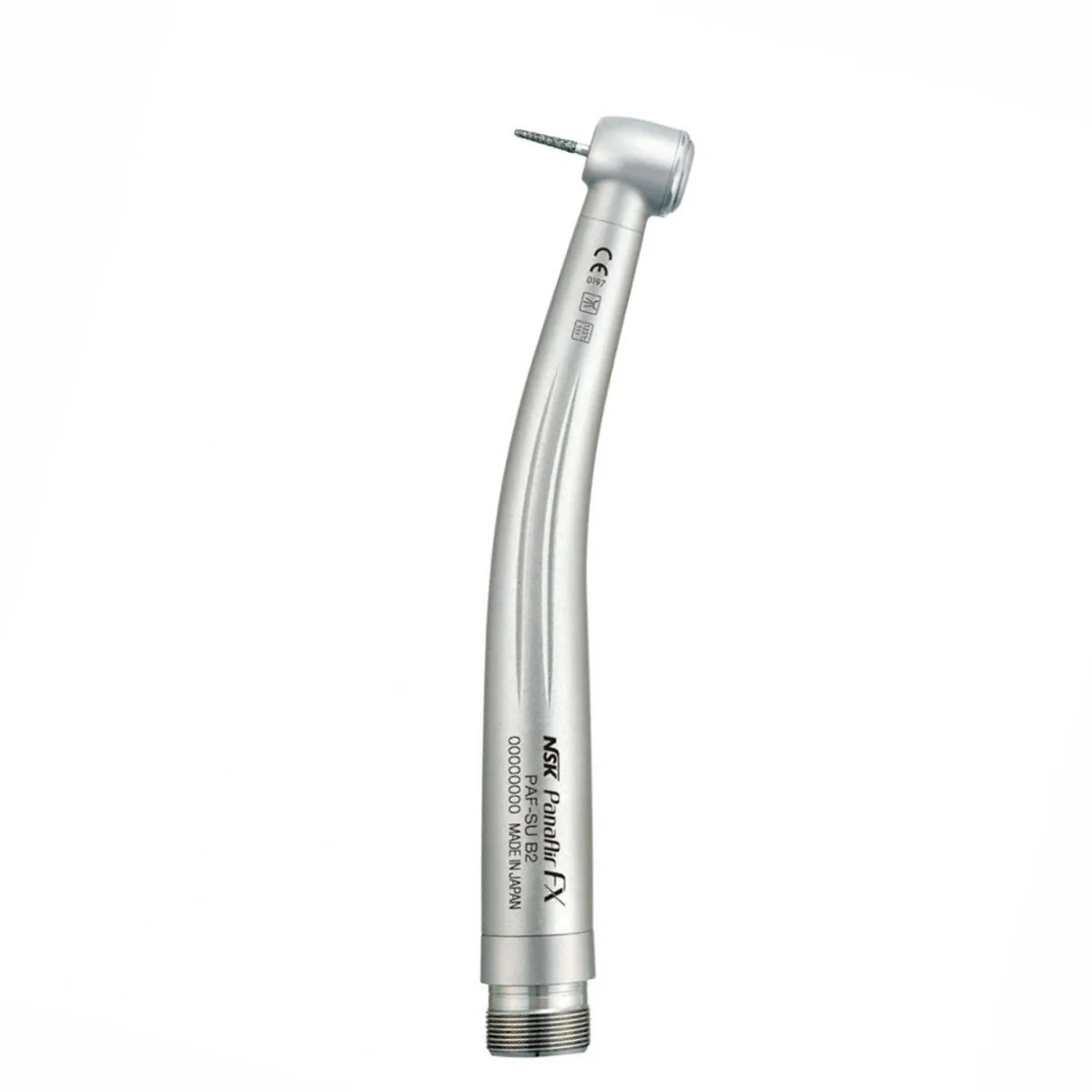

NSK Pana Air Push Button Handpiece FX-SU-B2

• Powerful 20-watt motor for fast and precise treatments.
• Sleek design provides maximum visibility in the oral cavity.
• Push-button chuck for easy and quick bur changes.
• Suitable for various environmental conditions (temperature and humidity).
• Designed for durability and reliable performance.

• Rotation Speed: 350,000 – 450,000 min-1
• Bur Type: ISO 1797-1 Ø1.59 – 1.60mm Standard Bur
• Chuck Type: Push Button Chuck
• Chucking Length: 10.2mm
• Max. Bur Length: 21mm
• Max. Working Part Diameter: Ø2mm
• Drive Air Pressure: 0.20 – 0.25MPa (2.0 – 2.5kgf/cm2)
• Air Consumption: ≤55 NL/min (0.25MPa)
• Water Pressure: 0.05 – 0.20MPa (0.5 – 2.0kgf/cm2)

• 1 x Pana Air Airotor Handpiece

Preparation:

• Ensure that the handpiece is clean and free from any debris or contaminants.
• Connect the handpiece to a suitable dental unit or air compressor.
• Confirm that the air pressure is within the recommended range of 0.20 – 0.25MPa (2.0 – 2.5kgf/cm2).
• Check that the water pressure is within the specified range of 0.05 – 0.20MPa (0.5 – 2.0kgf/cm2).

Bur Installation:

• Press the bur release button or activate the chuck mechanism to open the chuck.
• Insert the desired ISO 1797-1 Ø1.59 – 1.60mm standard bur into the chuck, ensuring it is securely held in place.
• Release the bur release button or deactivate the chuck mechanism to lock the bur in position.
• Verify that the bur is properly seated and does not wobble.

Adjusting Rotation Speed:

• Use the appropriate controls on the dental unit or air compressor to adjust the rotation speed within the range of 350,000 to 450,000 min-1.
• Select a rotation speed suitable for the specific dental procedure being performed.
• Ensure that the chosen rotation speed is appropriate for the type of bur being used.

Operating the Handpiece:

• Hold the handpiece in a comfortable and secure grip, ensuring proper control and maneuverability.
• Position the handpiece tip or working part at the desired location within the oral cavity.
• Activate the handpiece using the designated controls on the dental unit or foot pedal.
• Maintain steady and controlled movements while performing the dental procedure.
• Pay attention to the patient’s comfort and provide appropriate breaks or pauses when necessary.
