Waldent Ai Implant Touch Implant Motor

Advanced dental implant motor with AI calibration, real-time display, precise torque control, and variable speed for versatile, precise procedures.

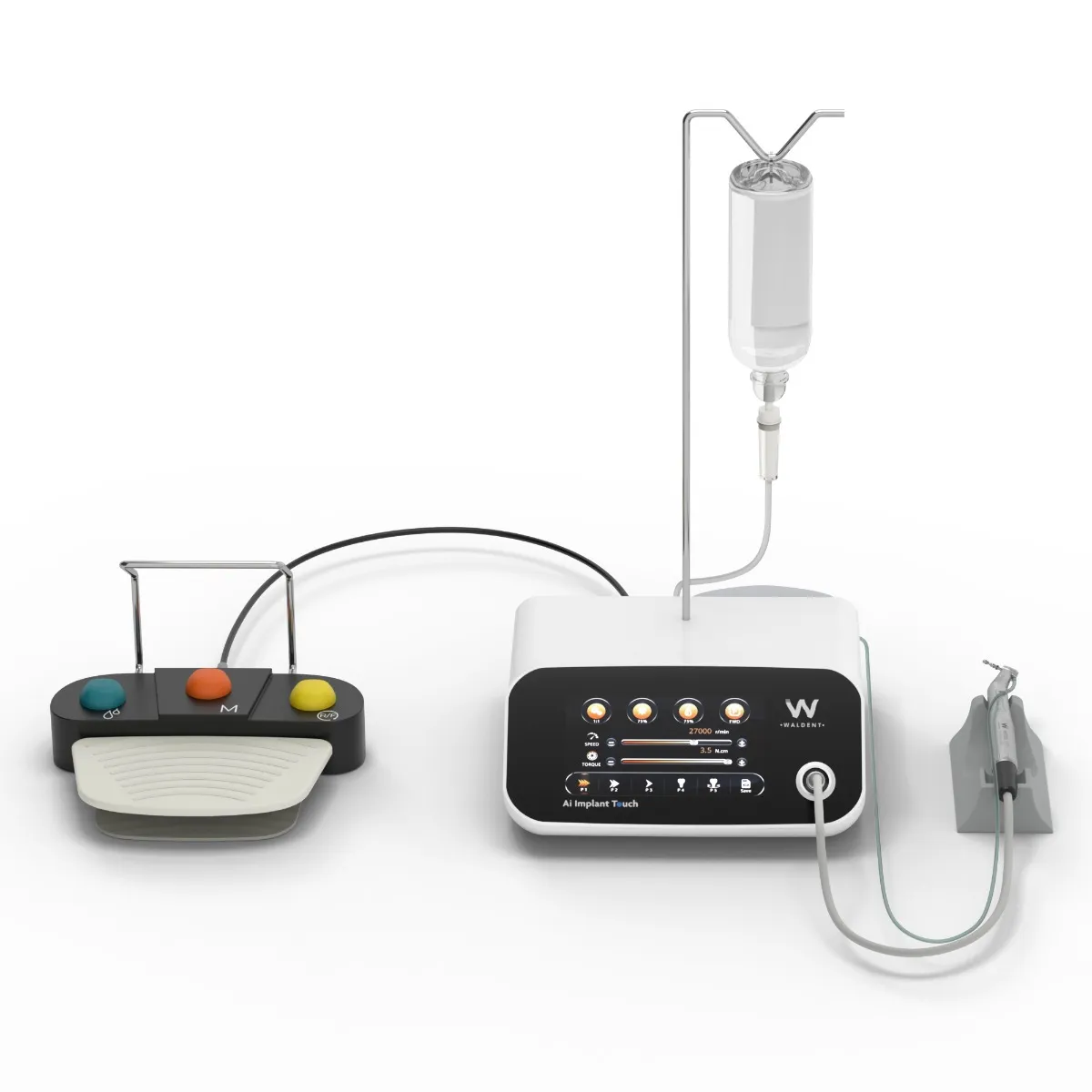

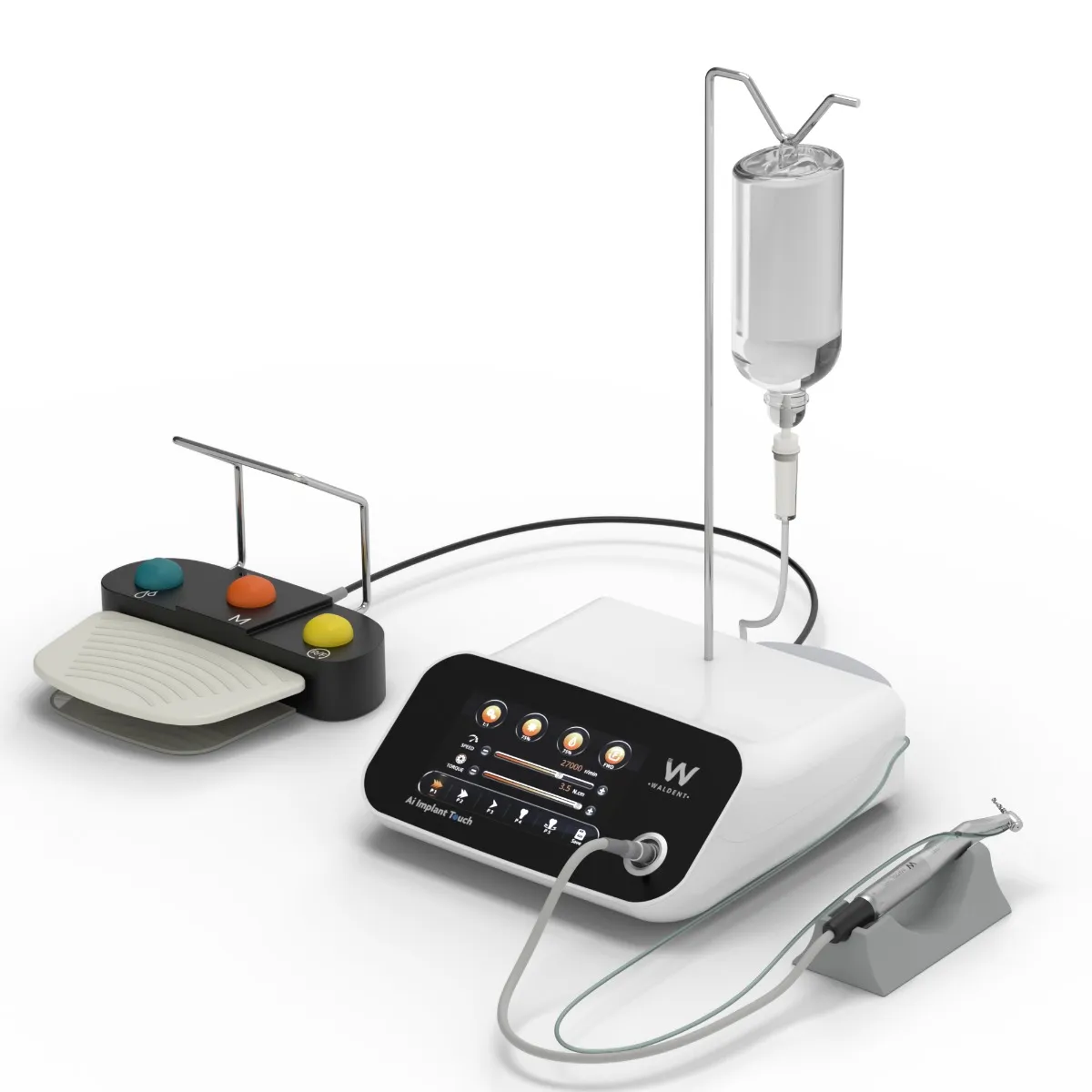

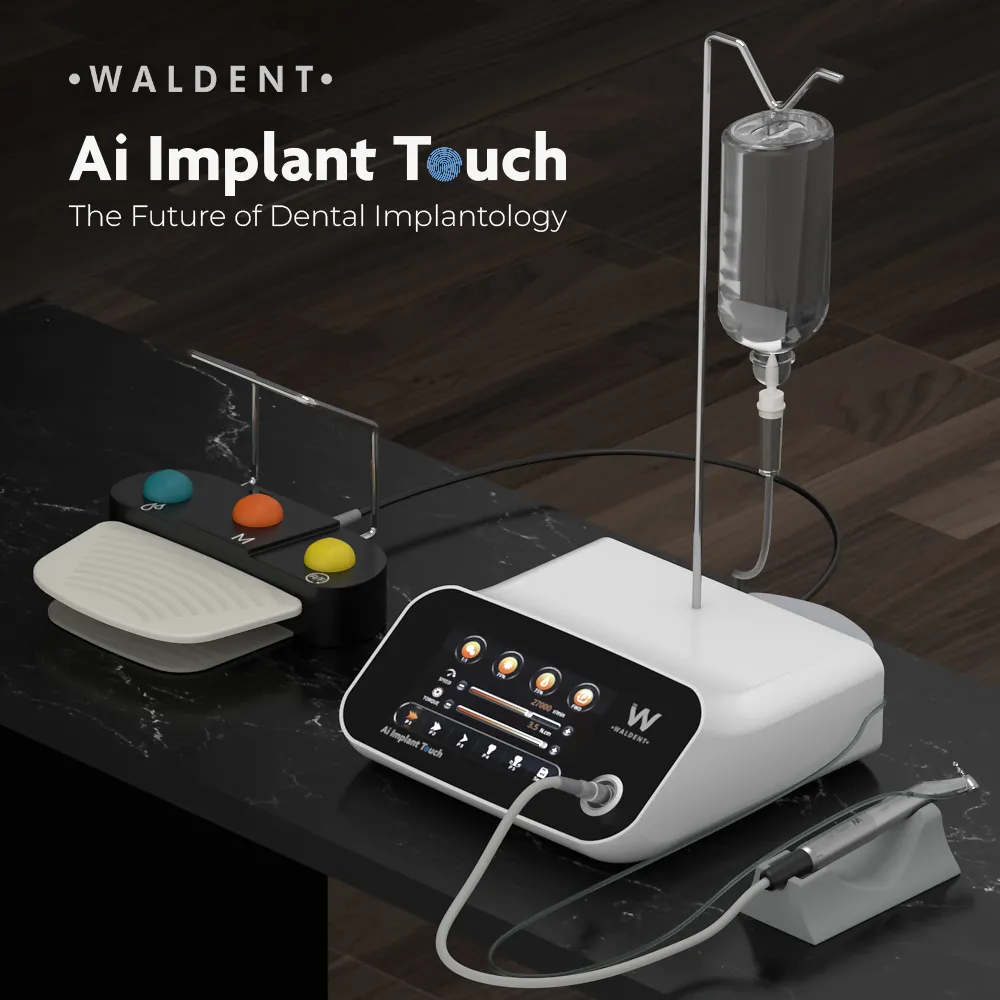

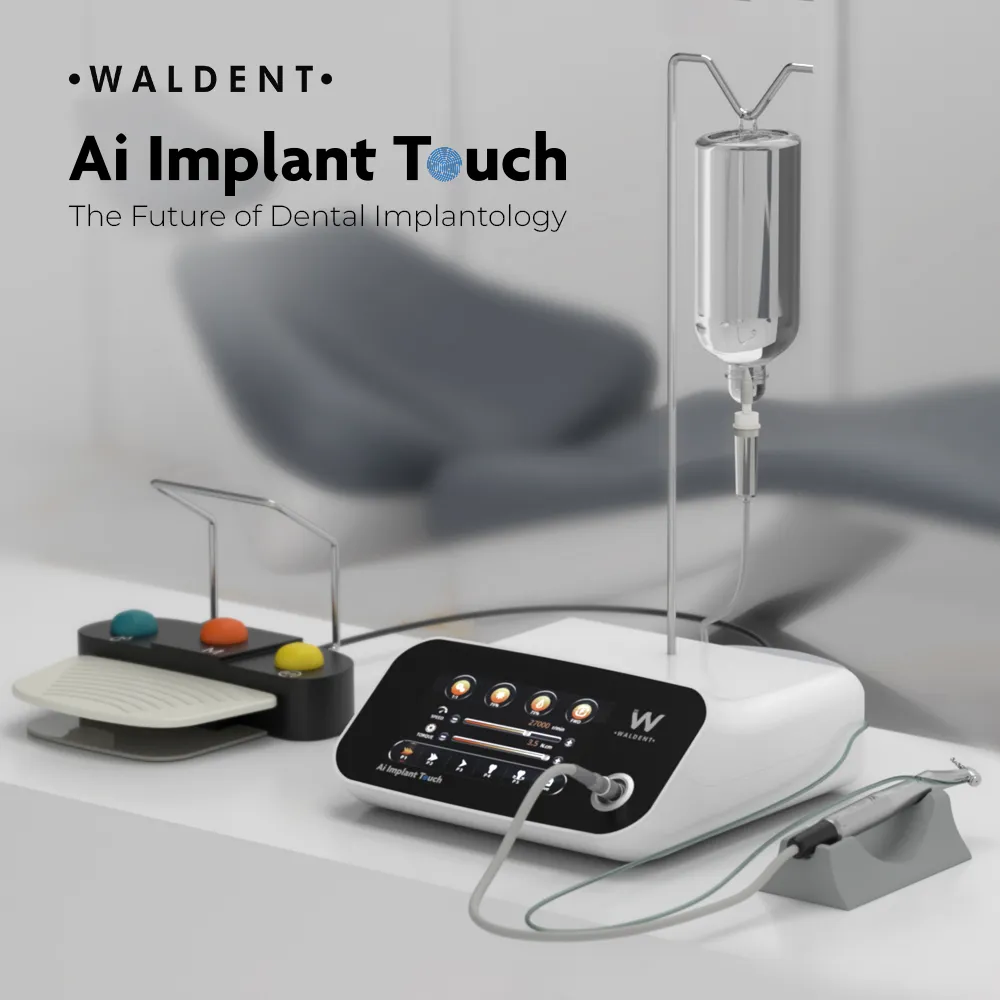

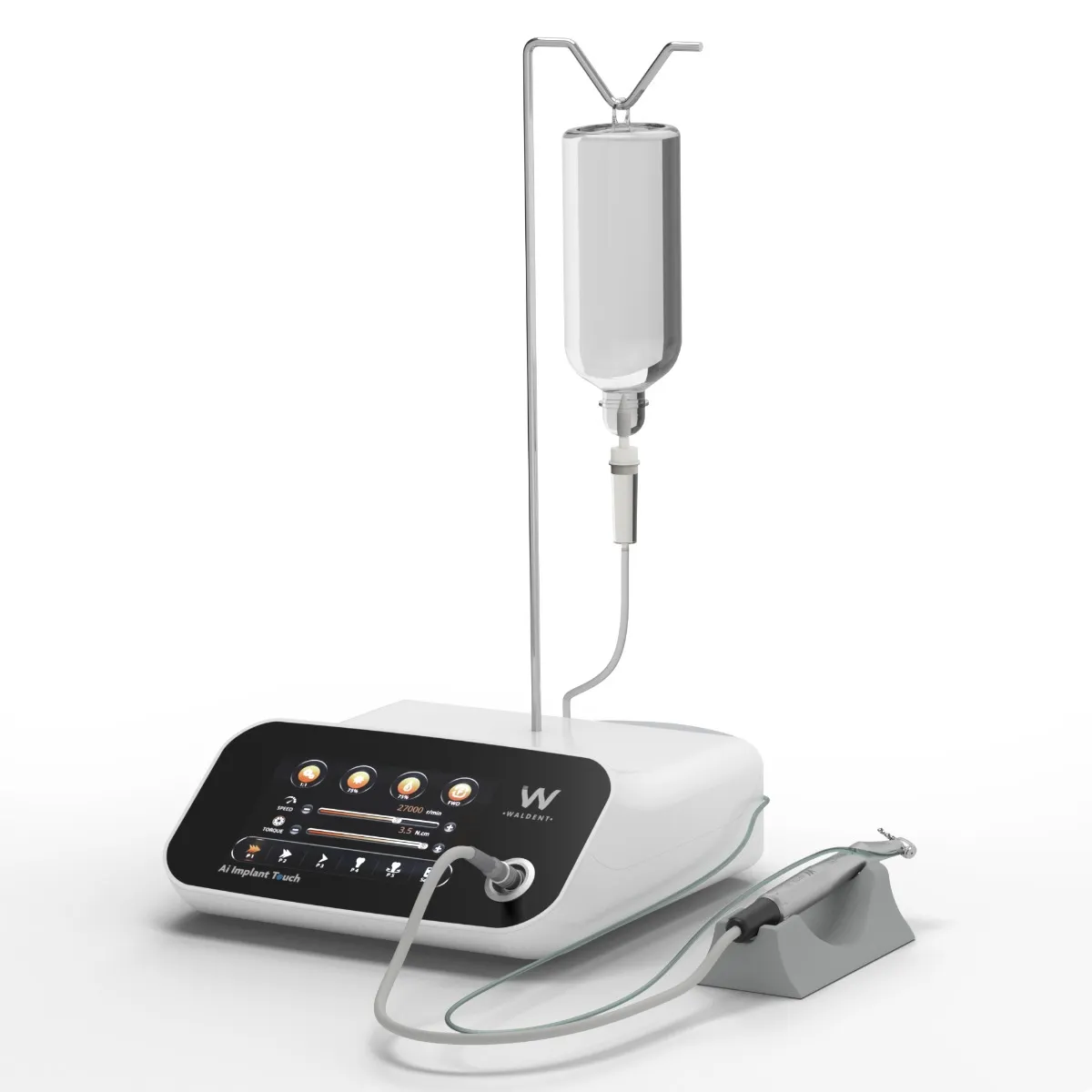

Waldent Ai Implant Touch Implant Motor

The Waldent Ai Implant Touch Implant Motor is a state-of-the-art device designed to assist dental professionals in performing precise and efficient implant procedures. It offers a wide range of features, including customizable settings for speed and torque, making it suitable for various implant systems. The motor provides real-time feedback, ensuring accuracy during surgery. Its ergonomic design enhances user comfort and control. With a comprehensive display and intuitive interface, it simplifies the operation, allowing dentists to focus on the patient. The Ai Implant Touch Implant Motor is a reliable and indispensable tool for implantologists, streamlining the implantation process and delivering optimal results.

Indication:

• The power system of this product is applicable to the treatment of tooth hard tissue in dental surgery, implantation, and maxillofacial surgery. In oral implant treatment, it is used for drilling and tapping of alveolar bone and installation of the implant.

Key Specifications:

• Machine Model: AI Implant Touch
• Voltage: AC 100~230 V
• Frequency: 50Hz
• Allowable Voltage Fluctuation: ±10%
• Maximum Power Consumption: 340VA
• Rated Voltage Speed Range: 100~40000 rpm (±10%)
• Rated Voltage Torque Range: 5∼70 N.cm (±10%)
• Cooling Water Flow: 0%,25%,50%,75%,100%,5 Gear Adjustable
• Operation Mode: S3 (3min/10min)
• Dimension (mm) (W*D*H): 300x280x128
• Weight (Including Motor) (kg): 5.4

Features:

• Ai Calibration: The system offers AI calibration, ensuring precise and accurate performance during dental procedures. This feature enhances the system’s reliability and precision.
• Real-Time Display: The 7-inch color capacitive touch screen provides real-time feedback and data display, allowing dental professionals to monitor and adjust parameters as needed during procedures.
• Precise Torque Calibration: The system offers precise torque calibration, allowing for accurate control of the torque applied during dental procedures, which is crucial for various tasks, including implant placement.

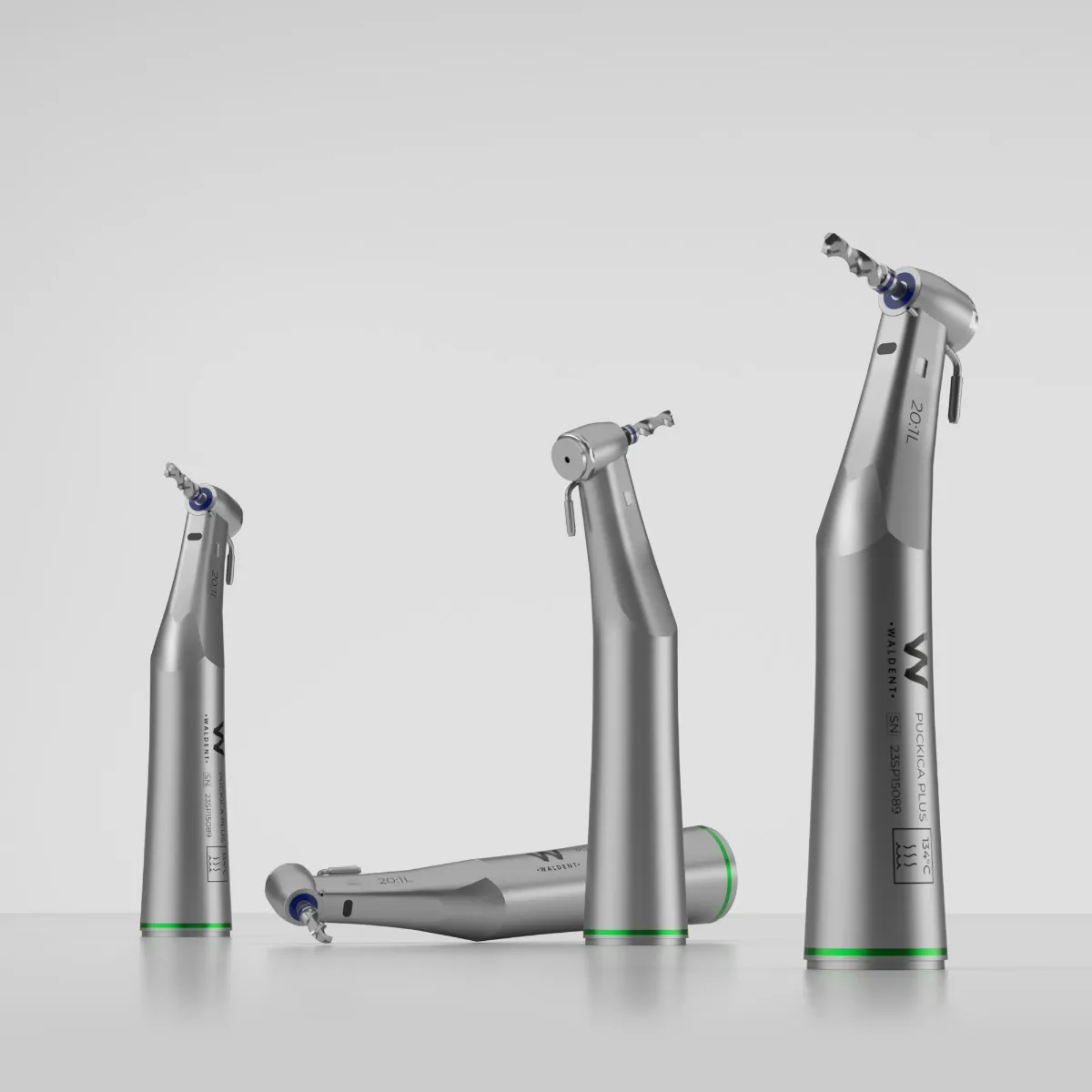

• Program Modes: This system offers 5 program modes, allowing compatibility with 7 different speed ratio contra-angles. Surgical parameters can be automatically saved for convenience.
• High-Performance Touch Screen: The 7-inch color capacitive touch screen is highly responsive, providing a user-friendly interface. It emits light without visual angle limitations, and brightness is adjustable.
• Brushless Motor: The brushless motor operates within a wide speed range, from 5 to 40,000 rpm. It provides high torque, making it suitable for implant procedures, repairs, tooth extractions, and orthopedic surgery.
• Maximum Torque: With a maximum torque of 70N.cm, this system offers powerful torque output, facilitating efficient bone cutting.
• Stability and Cooling: The system ensures unmatched stability, prevents overheating, and operates silently. An intelligent cooling system, along with inner and external channel cooling and washing, maintains the system’s performance.

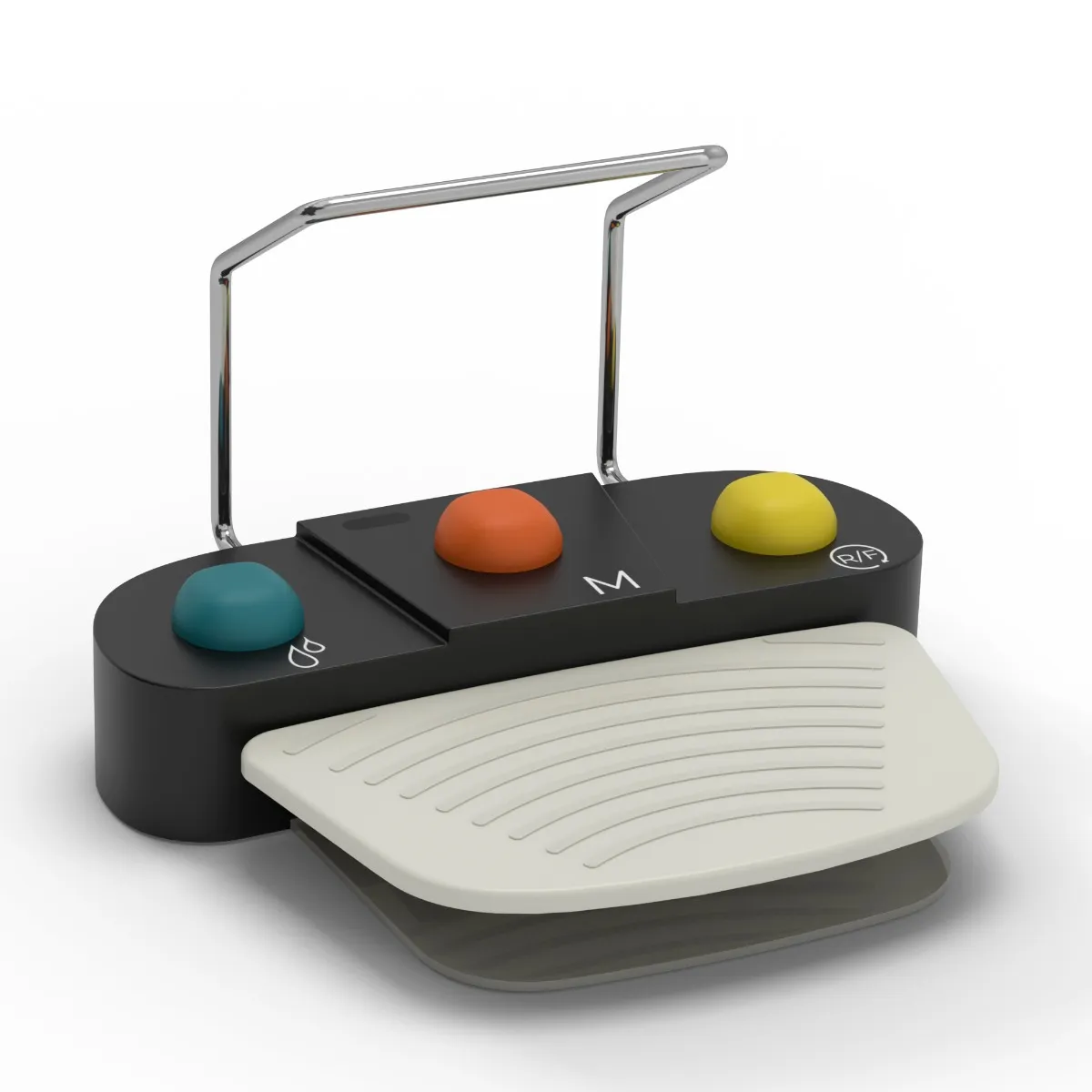

• Multi-Functional Foot Pedal: The system features an easy-to-use and flexible foot pedal, enabling various operating functions.

Warranty:

• Manufacturer/Importer warranty of 1 year as applicable for this product
• Service and Warranty are handled by the manufacturer/importer directly for this product
