• Connect the Chair Hole Coupling & Waldent Brushless LED Electric Motor with their respective connectors in Control Unit, use the foot pedal to control the electric motor. According to the different treatments and different handpieces, the speed can be adjusted from 100—200,000 rpm.

• Ergonomic designed length and weight greatly reduce the fatigue from long time operation, the motor can be sterilized.

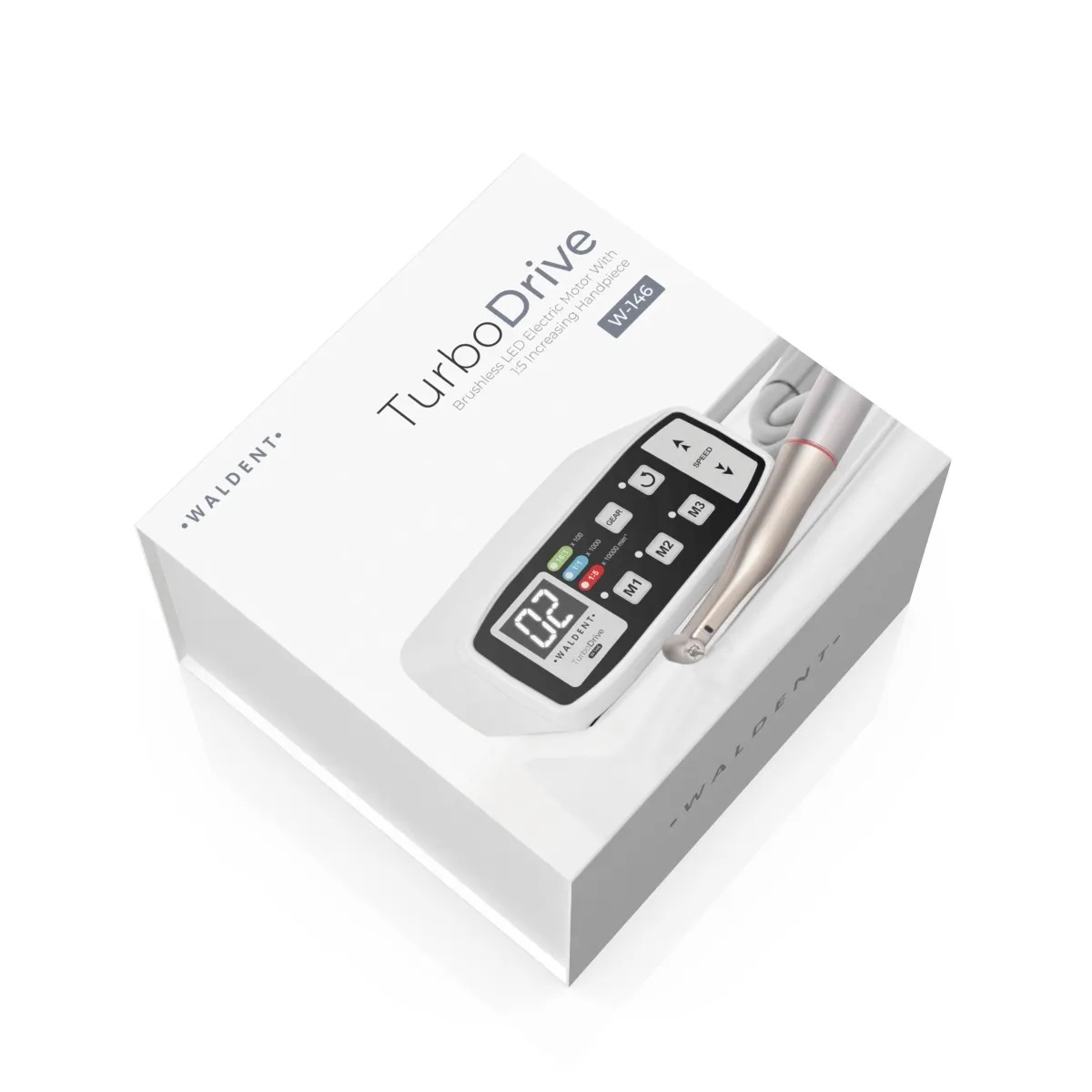

Waldent Brushless LED Electric Motor is a New-Gen technology of micromotor.

There are basically two types of handpieces, air-driven and electric. Electric handpieces are much stronger than air-driven since a motor is spinning the bur as opposed to air. This allows the doctor to remove decay at a faster pace. This will cut down on the time it takes to complete a procedure. Electric handpieces are routinely used in surgical procedures as implants as well. We also have specific electric handpieces used specifically for endodontics (root canals).

ADVANTAGES:

• Perfect balance
• Ultra light
• Mini size Fatigue free after long time use
• Powerful functions
• With LED illumination
• Small head slim body
• Low noise & vibration
• Durable
• Corrosion resistance

TECHNICAL SPECIFICATIONS :

• Increasing 1:5 ratio
• Internal 4 water sprays
• Import ceramic bearing
• Clamping force: 4.0kg
• Air pressure: 50kpa~103kpa
• Rotate speed : 2,000 – 40,000 rpm/min
• Torque : 3.4Ncm
• Power input : DC 24V
• Light intensity: 25,000 lux
• Bur applicable: 1.60mm
• Noise : ≤60db
• Chuck type: Push button
• Light：White LED
• Weight of motor : 71g
• 135℃ Autoclaved sterilization（only for micromotor）

• 1 x Micromotor
• 1 x Control unit
• 1 x Micromotor tube
• 1 x Power adaptor
• 1 x Operation manual
• 1 x 1:5 Gear Handpiece
• 2 x O-ring

Installation
Step 1：Fasten the connector at back of dental chair, another connector link up to
control device, and connect the handpiece.
Step 2：Insert the motor into control motor hose, then put it on the rack.
Step 3：Insert the power adaptor and connect up to power.
Step 4：Put the control device down on tooling tray, and insert the handpiece into
coupler.
Step 5: Connect up to power supply, turn the switch on, and motor start to run, operate by pedal of control device, operate same as motor.

• Press the “on”, the light is on, motor start to work.
• Press the up & down button to decrease or increase speed.
• Press the rotation button – green light – clockwise.
• Press the rotation button – red light – anticlockwise.

Warning : Do not press button during the motor on working.

Maintenance and repair

• Clean up the handpiece with Alcohol and keep it tidy.
• Do not clean, imerge or wipe with ionized water.
• Change the worn “O”ring periodic.
• Motor should be sterilized by steam.
