Description
High-quality dental digital radiography sensor compatible with Windows for precise imaging

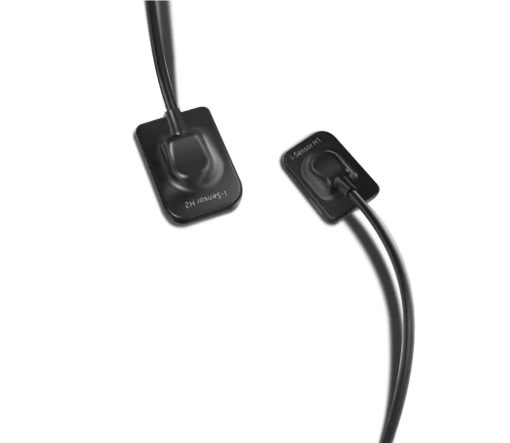

Waldent RTA i-Sensor RVG by Woodpecker is a state-of-the-art dental imaging solution designed to streamline radiographic procedures and enhance diagnostic precision. This Radiovisiography (RVG) system integrates seamlessly into dental practices, offering exceptional image quality and ease of use. The sensor boasts an ultra-thin profile and ergonomic design for patient comfort and precise placement. With advanced sensor technology, it captures X-ray radiation and converts it into high-resolution digital images for detailed analysis. The accompanying monitor provides real-time visualization of images, empowering dentists to make informed treatment decisions efficiently. Built with durability and reliability in mind, this RVG system ensures consistent performance, while its IP68 rating protects against dust and liquid ingress for long-lasting use. Experience the future of dental imaging with the Waldent RTA i-Sensor RVG by Woodpecker, where innovation meets excellence for superior patient care.
- Image Resolution:Â Ultra-high resolution for clear diagnostics
- User Interface:Â High-quality, user-friendly interface
- Design:Â Comfortable and ergonomic design
- Scope of Application:Â Oral two-dimensional image capturing, case diagnosis, information management
- Operation Mode:Â Intermittent operation mode
- Electric Shock Protection:Â BF type applied part
- Water Ingress Protection:Â IP68
- X-ray Generator Compatibility:Â Compliant with dental X-ray machine standards
- Power Adapter Input:Â 5V/USB interface
- Effective Area Size- 1 :Â 20*30mm( Size – 1Â )
- Effective Area Size – 1.5 : 24*33mm( Size – 1.5)
- Effective Area Size – 2:Â 26*36mm( Size – 2)
- Pixel Matrix Size -1:Â 1000*1500( Size-1)
- Pixel Matrix Size -1.5:Â 1200*1650(Â Size – 1.5)
- Pixel Matrix Size -2:Â 1300*1800mm( Size – 2)
- Pixel Size: 20μm
- Effective Resolution:Â > 12Ip/mm
- Temperature: 10℃ to 35℃
- Humidity:Â 20% to 90%
- Atmospheric Pressure:Â 70kPa to 106kPa
Installation Application Specification
- Operating System: Windows® 7 or above
- Processor: Intel® Core 4
- Memory:Â 8Â GB or above
- Hard Disk:Â 500Â GB or above
- USB Port:Â 4 high-speed USB 2.0 ports
- USB Chip:Â Intel or NECÂ / RENESAS
- Display Resolution:Â 1920 x 1080
- Software Installation:Â Run “Ai-Dental setup.exe” installation program
- Sensor Support Frame Installation: Fixed on flat wall with two screws, Secure sensor on support frame when not in use
- High-resolution imaging – 25lp/mm theoretical resolution
- Cmos Detector Techhnology
- Thinnest sensor 4:5mm
- USB cable – 2.8m
- Durable and reliable: 80000+ bending test & IP68 protection rating
- Smart and powerful software
- Curved Edges to Avoid Patient Injury
- Highly Flexible Cable
- 1 x Rvg i Sensor
- 1 x Disposable protective bag
- 1 x Sensor fixer
- 1 x Sensor silicone sleeve
- 1 x Anti-counterfeiting query label
- 1 x U disk
- 2 x Fixing screw
- 2 x Rubber Stopper
- 1 x Qualified certificate
- 1 x Warranty card
- 1 x Instruction manual
Warranty :Â
- Manufacturer/Importer warranty of 5 Years as applicable for this product
- Warranty does not apply against any physical damage to the product
