• High power and torque for surgical precision.
• The wide speed range for versatile surgical procedures.
• User-friendly console for easy operation.
• Program memory for customized settings.
• Powerful external water pump for optimal irrigation.
• Large LCD display for immediate program recognition.
• S Max SG20 Handpiece for precise surgical maneuvers.
• IPX8-certified foot control for seamless operation.

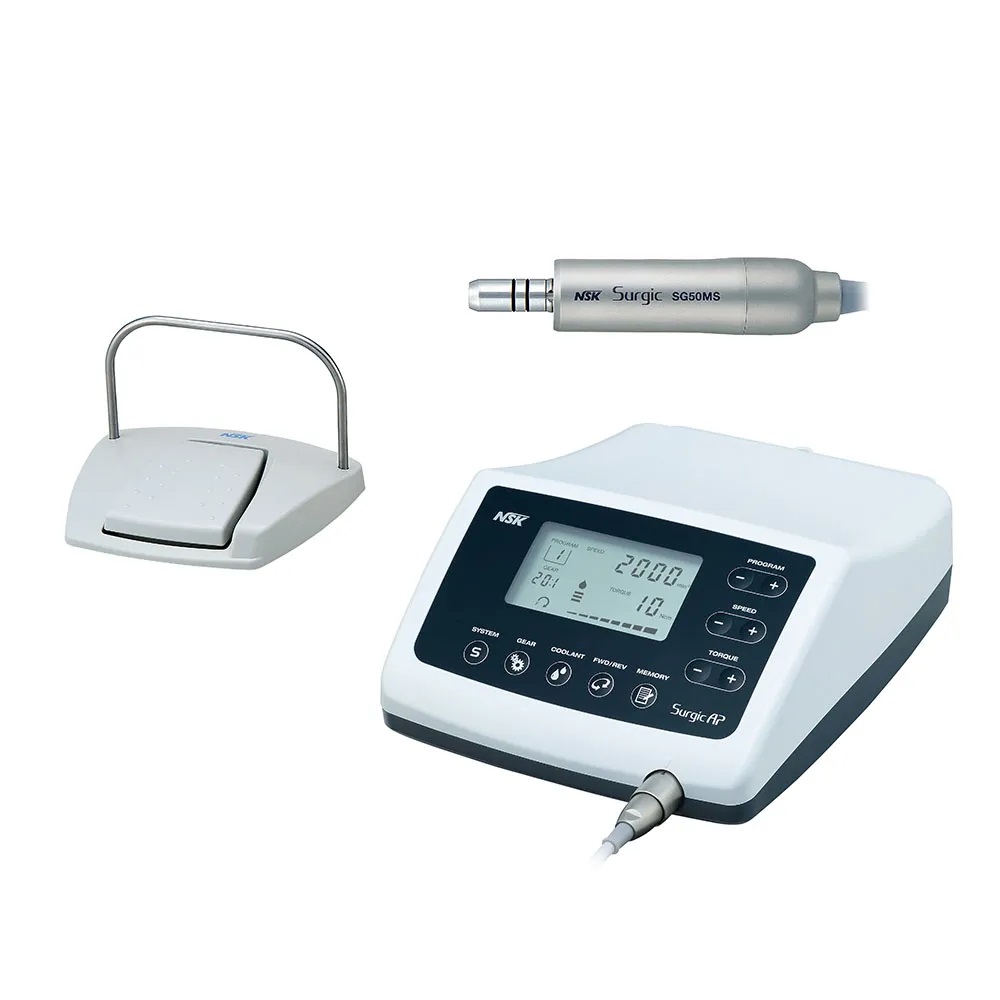

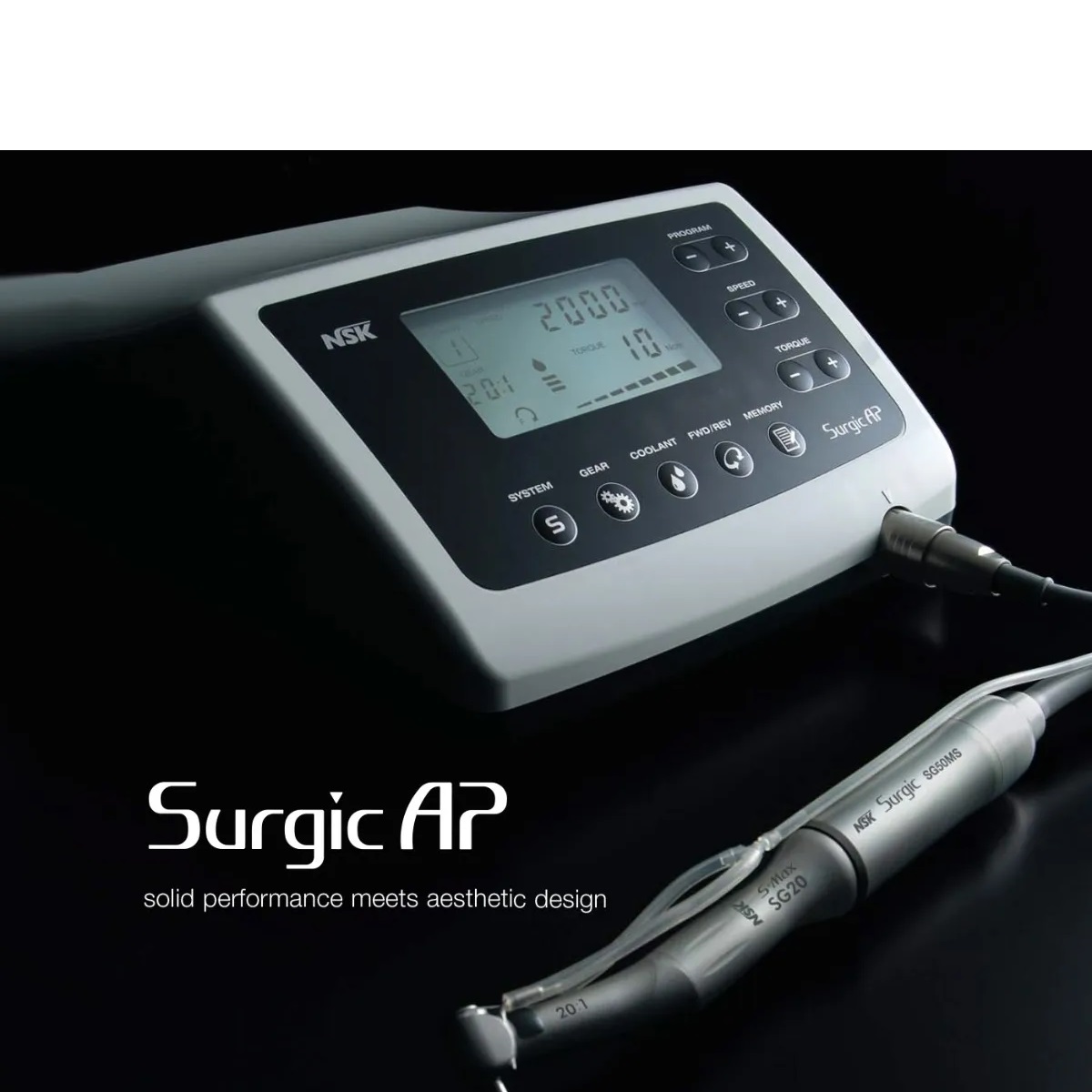

The NSK Surgic AP with S Max SG20 Handpiece is a high-performance dental surgical system specifically designed for oral and implant surgery. It combines the power and precision required for these procedures, offering exceptional performance and versatility. With a power output of 210 watts and a torque of 50 Ncm, the Surgic AP provides the necessary strength to handle various surgical tasks effectively. It features a wide speed range of 200-40,000 min-1, allowing for a flexible and fast response during different procedures. The compact console of the Surgic AP is user-friendly and easy to operate, making it suitable for the aseptic theatre environment. It has been designed with simplicity in mind, ensuring that surgeons and dental professionals can navigate the system effortlessly.

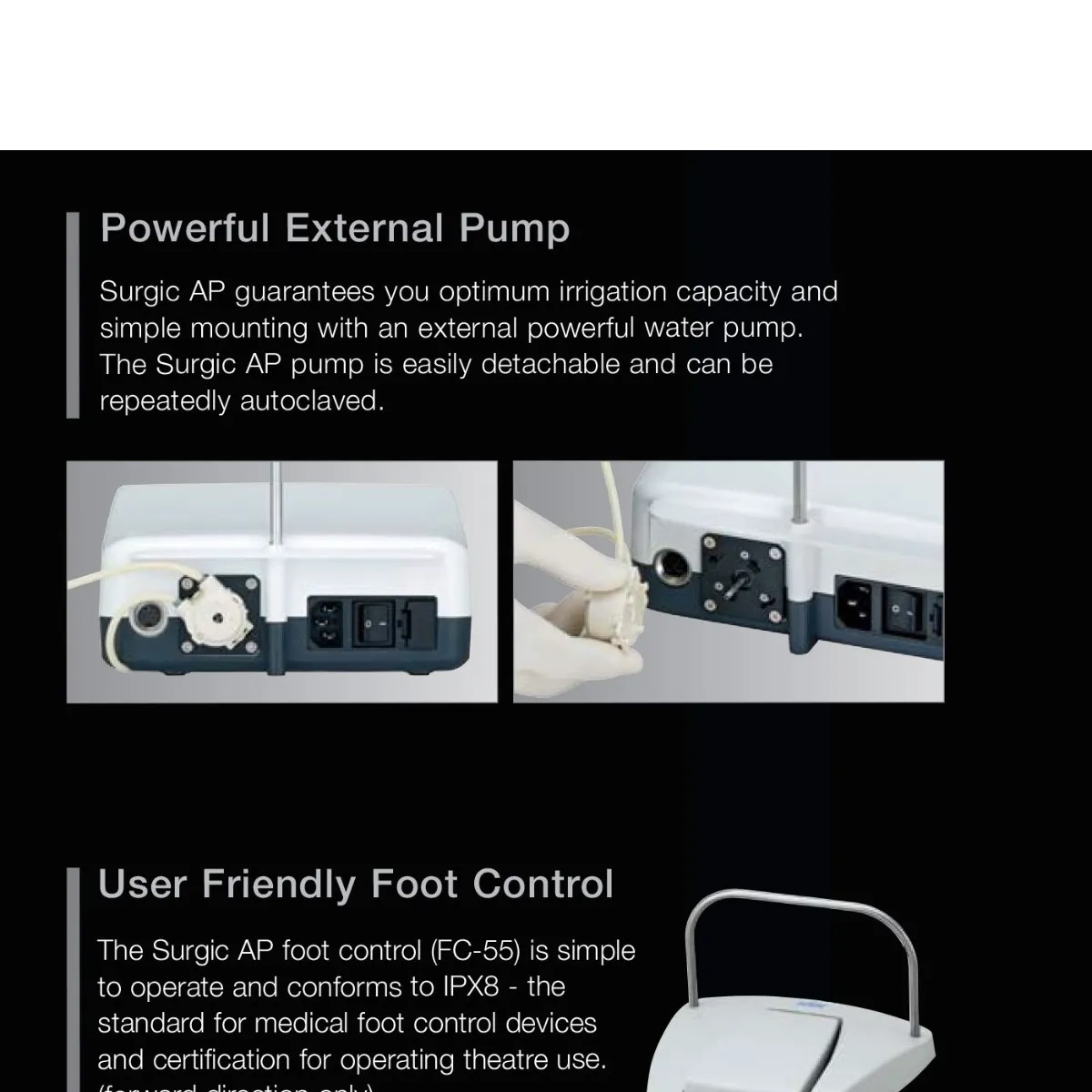

One of the notable features of the Surgic AP is its ability to memorize eight complete program options. Each program includes settings for speed, torque, coolant flow, and rotation direction. These program settings are retained even when the power is turned off, allowing for easy modification during operation. Saving a program parameter is as simple as pressing and holding the Memory button. The Surgic AP system comes equipped with a powerful external pump for optimum irrigation capacity. The pump is easily detachable and can be autoclaved repeatedly, ensuring proper sterilization. This feature provides convenience and ensures the system maintains a high level of hygiene.

The Surgic AP also features a large LCD display, which provides immediate recognition of the selected operational program data. This allows the user to have clear visibility and quick access to important information during surgical procedures.  Additionally, the Surgic AP system includes the S Max SG20 Handpiece, which is designed to work seamlessly with the console. The handpiece offers exceptional precision and control, allowing for precise and accurate surgical maneuvers. It is ergonomically designed for comfortable use and ensures a secure grip.

For ease of operation, the Surgic AP system includes a user-friendly foot control device (FC-55) that conforms to the IPX8 standard for medical foot control devices. This certification ensures its suitability for use in the operating theatre. The foot control allows for forward direction operation, providing convenient and efficient control over the surgical procedures

Control Unit

• Programs: 8 Programs
• Dimensions: W275xD207xH101mm
• Max. Output/ Max. Torque: 210W/ 50Ncm
• Power Supply: AC230V 50/60Hz
• Max. Pump Output: 75mL/ min

Micromotor (SG50MS)

• Motor Speed: 200-40,000 min-1
• Non-optic
• Brushless

Foot Control (FC-55)

• Speed Control: Variable
• IPX8 certified

• 1 X Control Unit
• 1 X Non-Optic Micromotor (SG50MS)
• 1 X SG20 Handpiece (20:1 Reduction)
• 1 X FC-55 Foot Control (IPX8 certified)
• 1 X Handpiece Stand
• 5 X Irrigation Tube and Other Accessories

Setup

• Connect the Surgic AP console to a power source and turn it on.
• Attach the external water pump securely to the console.
• Connect the S Max SG20 Handpiece to the console.

Program Selection:

• Choose the appropriate program option on the console for your surgical procedure.
• Verify the selected program data on the large LCD display.

Handpiece Preparation:

• Ensure the S Max SG20 Handpiece is clean and undamaged.
• Attach the surgical bur or instrument securely to the handpiece.

Foot Control Operation:

• Connect and confirm the proper connection of the Surgic AP foot control (FC-55) to the console.
• Familiarize yourself with the foot control’s forward direction operation.

Power and Speed Control:

• Adjust the power output on the console to match your procedure’s requirements.
• Set the desired speed range using the console’s speed control function.

Coolant Flow Control:

• Determine the appropriate coolant flow for your procedure.
• Adjust the coolant flow setting on the console accordingly.

Operating the Handpiece:

• Hold the S Max SG20 Handpiece securely and comfortably.
• Position the bur or instrument at the desired location.
• Activate the foot control to initiate rotation and perform the procedure.
• Monitor and adjust speed, torque, and coolant flow as needed.

Modifying Program Parameters:

• Make any necessary changes to program parameters during the operation.
• Press and hold the Memory button on the console to save modified settings.

• Manufacturer/Importer warranty of 1 year as applicable for this product
• Service and Warranty are handled by the manufacturer/importer directly for this product
